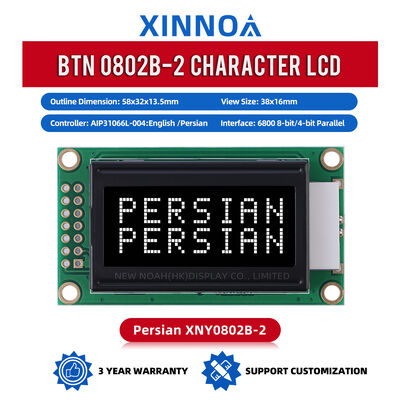

Persian BTN Black Film 0802B-2 LCM Original ST7066
Persian 0802B-2
The Persian 0802B-2 is a reliable and efficient display module suitable for a variety of industrial and commercial applications. Its compact design and clear display make it an excellent choice for integrating into your existing systems.
Key Benefits:
- Clear and readable 08x02 display.
- Compact and easy to integrate.
- Durable construction for long-lasting performance.
- Customizable options available.
Target Industries and Applications: Industrial control panels, instrumentation, embedded systems, and consumer electronics.
Product Attributes
Technical Specifications
| Attribute | Value |
|---|---|
| Hign-concerned Chemical | None |
| Display Mode | 0802 |
| Resolution | 08*02 |
| is_customized | Yes |
| Model Number | Persian 0802B-2 |
| Type | COB |
| Origin | Mainland China |
| Outline Dimension | 58x32x13.5mm |
| View Size | 38x16mm |
| Controller | ST7066 |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
