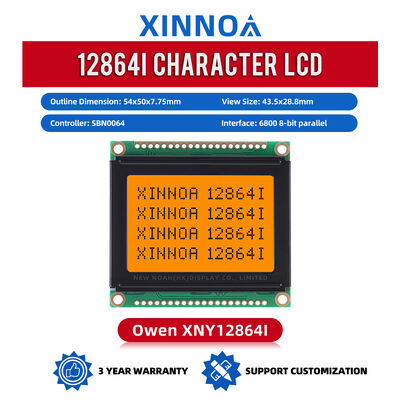

Grey Film 12864I Text Display LCD Controller SBN0064 Structure 54*50MM
Owen 12864I
High-quality display module suitable for a variety of industrial and commercial applications. Offers clear and reliable performance.
Key Benefits:
- Excellent readability
- Compact design
- Customizable options available
- Durable construction
Target Industries: Industrial automation, consumer electronics, medical devices.
Typical Applications: Control panels, handheld devices, diagnostic equipment.
Product Attributes
Technical Specifications
| Attribute | Value |
|---|---|
| Hign-concerned Chemical | None |
| Display Mode | 12864 |
| Resolution | 128*64 |
| is_customized | Yes |
| Model Number | Owen 12864I |
| Type | COB |
| Origin | Mainland China |
| Outline Dimension | 54x50x7.75mm |
| View Size | 43.5×28.8mm |
| Controller | SBN0064 |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
