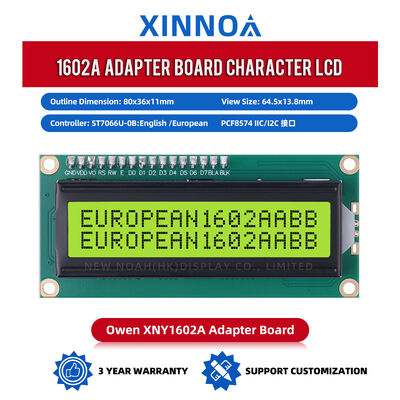

European Yellow Green Film 1602A IIC Adapter Board Monochrome Screen Liquid Crystal Display
European 1602A IIC Adapter Board
The European 1602A IIC Adapter Board is a reliable and efficient solution for your display needs. Designed for ease of integration and optimal performance, this adapter board simplifies the connection process and ensures clear and consistent display output.
Key Benefits:
- Simplified IIC communication
- Compact and robust design
- Easy to integrate into existing systems
- Ensures clear and consistent display
Target Industries and Applications: Industrial automation, embedded systems, hobbyist projects, and any application requiring a reliable 1602 display interface.
Product Attributes
Technical Specifications
| Attribute | Value |
|---|---|
| Hign-concerned Chemical | None |
| Display Mode | 1602 |
| Resolution | 16*02 |
| is_customized | Yes |
| Model Number | European 1602A IIC Adapter Board |
| Type | COB |
| Origin | Mainland China |
| Outline Dimension | 80x36x11mm |
| View Size | 64.5×14.5mm |
| Controller | ST7066 |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
Product Images
