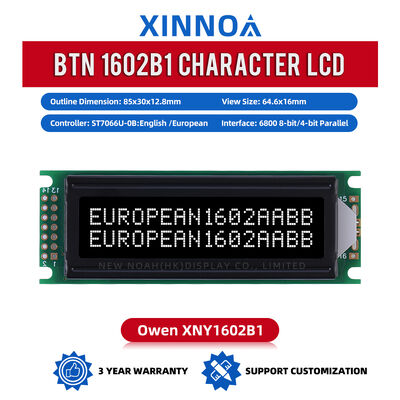

European BTN Black Film 1602B1 Character LCD Screen Interface Double Row Interface Module

European BTN Black Film 1602B1 Character LCD Screen Interface Double Row Interface Module

Detail Information
Model Number
European 1602B1
Hign-concerned Chemical:
None
Display Mode:
1602
Resolution:
16*02
Is_customized:
Yes
Type:
COB
Origin:
Mainland China
Outline Dimension:
85x30x12.8mm
View Size:
64.6x16mm
Controller:
ST7066U
Attribute:
Black Color
Value:
Black-Blue, Black-Green, Black-Ice Blue, Black-Orange, Black-Purple, Black-Red, Black-White, Black-Yellow
Product Description

European 1602B1

The European 1602B1 is a versatile and reliable display module designed for a wide range of applications. Its compact design and clear display make it an ideal choice for industrial equipment, consumer electronics, and more.

Key Benefits:

  • Clear and easy-to-read display
  • Compact and durable design
  • Wide operating temperature range
  • Low power consumption
  • Customizable options available

Target Industries: Industrial Automation, Consumer Electronics, Automotive, Medical Devices

Applications: Control Panels, Instrumentation, HMI Devices, Embedded Systems

Product Attributes

FOB Unit: piece
Product MOQ: N/A
FOB Price: 2.4
Packaging & Delivery: Tax excluded, add at checkout if applicable.
Weight: 0.0702 kg
Dimensions: 10 × 4 × 3 cm
Available Colors: Black-Blue, Black-Green, Black-Ice Blue, Black-Orange, Black-Purple, Black-Red, Black-White, Black-Yellow

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 1602
Resolution 16*02
Is Customized Yes
Model Number European 1602B1
Type COB
Origin Mainland China
Outline Dimension 85x30x12.8mm
View Size 64.6x16mm
Controller ST7066U


European BTN Black Film 1602B1 Character LCD Screen Interface Double Row Interface Module 0

European BTN Black Film 1602B1 Character LCD Screen Interface Double Row Interface Module 1

European BTN Black Film 1602B1 Character LCD Screen Interface Double Row Interface Module 2

European BTN Black Film 1602B1 Character LCD Screen Interface Double Row Interface Module 3

European BTN Black Film 1602B1 Character LCD Screen Interface Double Row Interface Module 4

European BTN Black Film 1602B1 Character LCD Screen Interface Double Row Interface Module 5

European BTN Black Film 1602B1 Character LCD Screen Interface Double Row Interface Module 6

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
