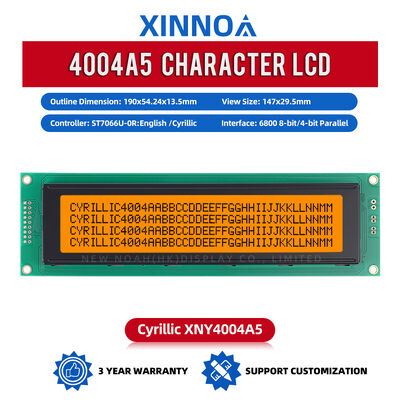

Cyrillic Gray Film 4004A5 Character Dot Matrix Screen 4X40 4004 18PIN Interface Module

Cyrillic Gray Film 4004A5 Character Dot Matrix Screen 4X40 4004 18PIN Interface Module

Detail Information
Model Number
Cyrillic 4004A5
Hign-concerned Chemical:
None
Display Mode:
4004
Resolution:
40*04
Is_customized:
Yes
Type:
COB
Origin:
Mainland China
Outline Dimension:
190×54.24×13.5mm
View Size:
147×29.5mm
Controller:
ST7066U
Color:
Red Light-black Font, Gray Light-black Font, Green Light-black Font, Gray Light-blue Font, Orange Light-black Font, Ice Blue Light-black Font
Product Description

Cyrillic 4004A5

The Cyrillic 4004A5 is a reliable and versatile display solution designed for a variety of industrial and commercial applications. Its robust construction and clear display make it an excellent choice for demanding environments.

Key Benefits:

  • Clear and easily readable display
  • Durable construction for long-lasting performance
  • Customizable options to meet specific needs
  • Easy integration into existing systems
  • Cost-effective solution for display requirements

Target Industries: Industrial automation, consumer electronics, medical devices, and more.

Applications: Control panels, instrumentation, data displays, and user interfaces.

Product Attributes

FOB Price $12.72
FOB Unit piece
Product MOQ Not Specified
Packaging & Delivery Not Specified

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 4004
Resolution 40*04
Is Customized Yes
Model Number Cyrillic 4004A5
Type COB
Origin Mainland China
Outline Dimension 190×54.24×13.5mm
View Size 147×29.5mm
Controller ST7066U


Cyrillic Gray Film 4004A5 Character Dot Matrix Screen 4X40 4004 18PIN Interface Module 0

Cyrillic Gray Film 4004A5 Character Dot Matrix Screen 4X40 4004 18PIN Interface Module 1

Cyrillic Gray Film 4004A5 Character Dot Matrix Screen 4X40 4004 18PIN Interface Module 2

Cyrillic Gray Film 4004A5 Character Dot Matrix Screen 4X40 4004 18PIN Interface Module 3

Cyrillic Gray Film 4004A5 Character Dot Matrix Screen 4X40 4004 18PIN Interface Module 4

Cyrillic Gray Film 4004A5 Character Dot Matrix Screen 4X40 4004 18PIN Interface Module 5

Cyrillic Gray Film 4004A5 Character Dot Matrix Screen 4X40 4004 18PIN Interface Module 6

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
