Gray Film 2004D Font Screen 16PIN Interface Module ST7066U Single Row Interface Module

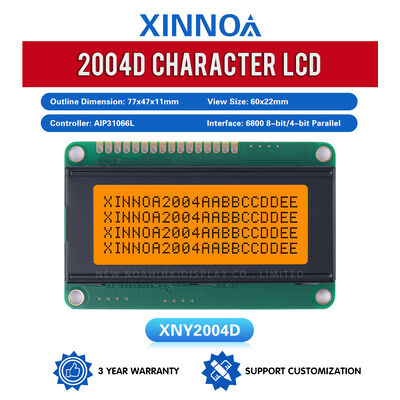

2004D LCD Module
The 2004D LCD module is a reliable and versatile display solution suitable for a wide range of industrial and commercial applications. Its clear display and robust design ensure optimal performance even in demanding environments.
Key Benefits:
- Clear and readable 20x04 display
- Durable COB construction for long-lasting performance
- Easy integration with standard controllers (ST7066U)
- Customizable options available to meet specific requirements
- Compact design for space-constrained applications
Target Industries and Applications: Industrial control, instrumentation, consumer electronics, and embedded systems.
Product Attributes
Technical Specifications
| Feature | Specification |
|---|---|
| Display Mode | 2004 |
| Resolution | 20*04 |
| Customized | Yes |
| Model Number | 2004D |
| Type | COB |
| Outline Dimension | 77x47x11mm |
| View Size | 60x22mm |
| Controller | ST7066U |
| Hign-concerned Chemical | None |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
