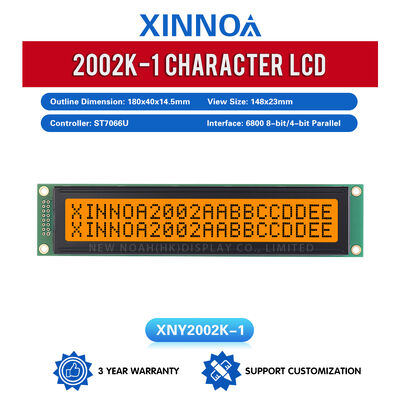

Gray Film 2002K-1 Liquid Crystal Display 02X20 ST7066U Large Screen Source Manufacturer
2002K-1
This product, 2002K-1, is designed to meet your specific needs. It is suitable for a variety of applications.
- High-quality construction
- Customizable options available
- Reliable performance
- Designed for various applications
Target Industries: Various
Applications: General purpose
Product Attributes
Technical Specifications
| Attribute | Value |
|---|---|
| Hign-concerned Chemical | None |
| Display Mode | 2002 |
| Resolution | 20*02 |
| Is Customized | Yes |
| Model Number | 2002K-1 |
| Type | COB |
| Origin | Mainland China |
| Outline Dimension | 180x40x14.5mm |
| View Size | 148x23mm |
| Controller | ST7066U |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
