European Yellow Green Film 2402A Multilingual Module Lead Free Gold-Plated Pcb Board

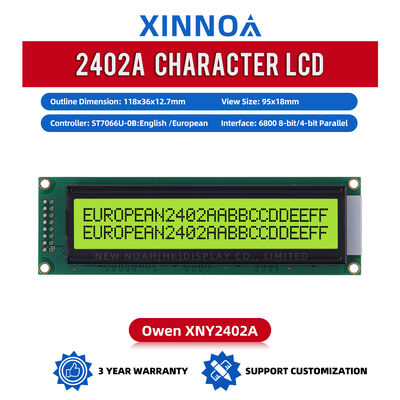

European 2402A
The European 2402A is a high-quality display module designed for various industrial and commercial applications. Its robust construction and clear display make it an ideal choice for integration into your products.
Key Benefits:
- Clear and readable 24x02 display.
- Durable COB construction.
- Customizable to your specific needs.
- Wide operating temperature range.
- Easy integration with standard controllers.
Target Industries: Industrial automation, consumer electronics, medical devices, and instrumentation.
Applications: Control panels, handheld devices, diagnostic equipment, and measurement instruments.
Product Attributes
Technical Specifications
| Attribute | Value |
|---|---|
| Hign-concerned Chemical | None |
| Display Mode | 2402 |
| Resolution | 24*02 |
| Is Customized | Yes |
| Model Number | European 2402A |
| Type | COB |
| Origin | Mainland China |
| Outline Dimension | 118x36x12.7mm |
| View Size | 95x18mm |
| Controller | ST7066U |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
