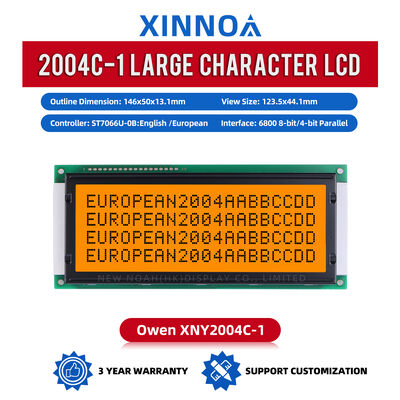

European Gray Film 2004C-1 Large Character Dot Matrix Screen ST7066U
European 2004C-1
The European 2004C-1 is a reliable and versatile display module designed for a variety of industrial and commercial applications. Its clear display and robust construction make it an ideal choice for integrating into your products.
Key Benefits:
- Clear and readable 20x04 display.
- Durable COB construction for long-lasting performance.
- Easy integration with ST7066U controller.
- Customizable options available to meet specific needs.
Target Industries and Applications:
Suitable for use in industrial control panels, instrumentation, and other embedded systems requiring a clear and reliable display.
Product Attributes
Technical Specifications
| Attribute | Value |
|---|---|
| Hign-concerned Chemical | None |
| Display Mode | 2004 |
| Resolution | 20*04 |
| is_customized | Yes |
| Model Number | European 2004C-1 |
| Type | COB |
| Origin | Mainland China |
| Outline Dimension | 146x50x13.1mm |
| View Size | 123.5×44.1mm |
| Controller | ST7066U |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
