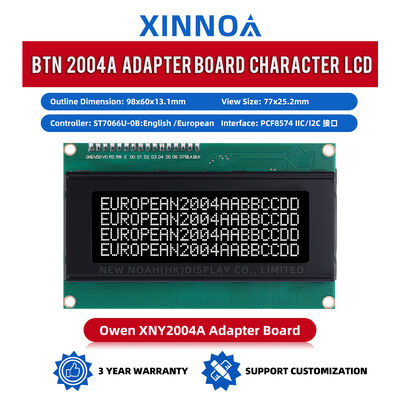

European BTN Black Film2004A IIC Adapter Board Character 12C Interface 5V
European 2004A IIC Adapter Board
The European 2004A IIC Adapter Board is a versatile and reliable solution for various display applications. Designed for ease of integration and optimal performance, this adapter board offers a seamless interface for your display needs.
Key Benefits:
- Simplified IIC communication
- Compact and robust design
- Easy integration into existing systems
- High-quality components for reliable performance
- Ideal for industrial and commercial applications
Target Industries and Applications: Industrial automation, consumer electronics, medical devices, and more.
Product Attributes
Technical Specifications
| Attribute | Value |
|---|---|
| Hign-concerned Chemical | None |
| Display Mode | 2004 |
| Resolution | 20*04 |
| Is Customized | Yes |
| Model Number | European 2004A IIC Adapter Board |
| Type | COB |
| Origin | Mainland China |
| Outline Dimension | 98x60x13.1mm |
| View Size | 77×25.2mm |
| Controller | ST7066U |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
