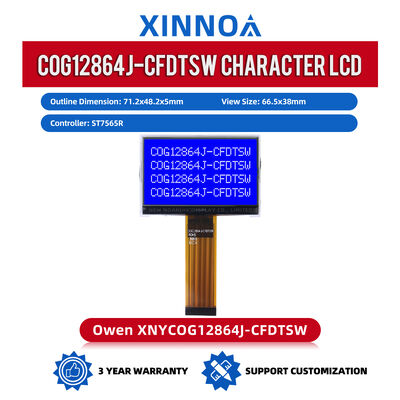

Blue Film COG12864J-CFDTSW Screen Display Graphic Cog Fog LCD With LED Backlight
Owen COG12864J-CFDTSW
High-quality LCD display module designed for various industrial and commercial applications. The Owen COG12864J-CFDTSW offers a clear and reliable display solution with excellent visibility and performance.
Key Benefits:
- High Resolution: 128x64 pixels for sharp and detailed visuals.
- Compact Design: Outline Dimension of 71.2×48.2x5mm for easy integration.
- Wide Viewing Area: 66.5x38mm View Size for optimal readability.
- Reliable Controller: Utilizes ST7565R controller for stable performance.
- Customizable: Yes, customized options available to meet specific requirements.
Target Industries & Applications:
Ideal for use in industrial control panels, medical devices, instrumentation, and other applications requiring a reliable and clear display.
Product Attributes
Technical Specifications
| Attribute | Value |
|---|---|
| Hign-concerned Chemical | None |
| Display Mode | 12864 |
| Resolution | 128*64 |
| Is Customized | Yes |
| Model Number | Owen COG12864J-CFDTSW |
| Type | COB |
| Origin | Mainland China |
| Outline Dimension | 71.2×48.2x5mm |
| View Size | 66.5x38mm |
| Controller | ST7565R |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
