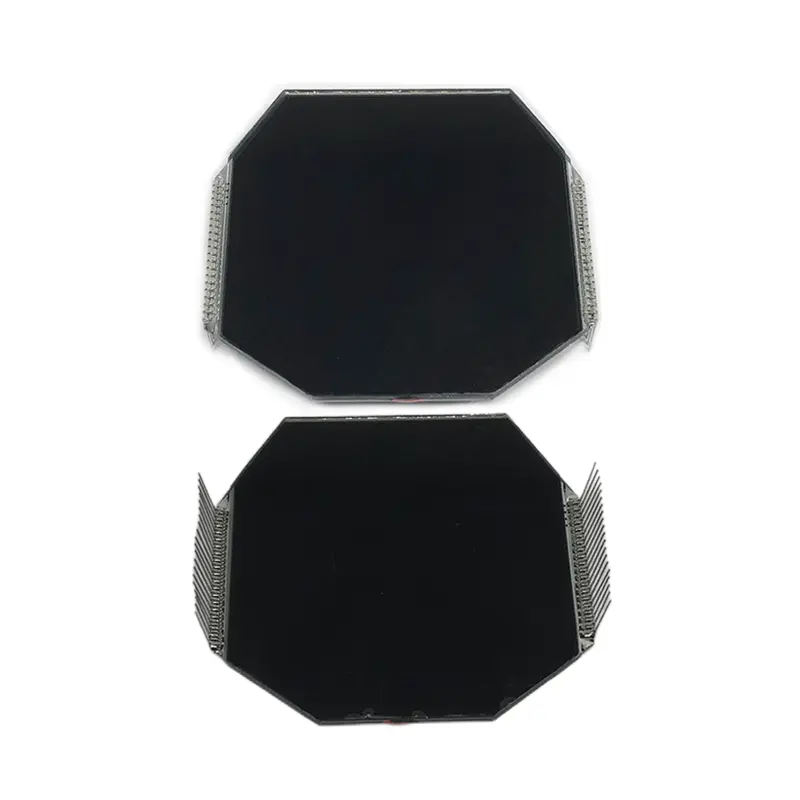

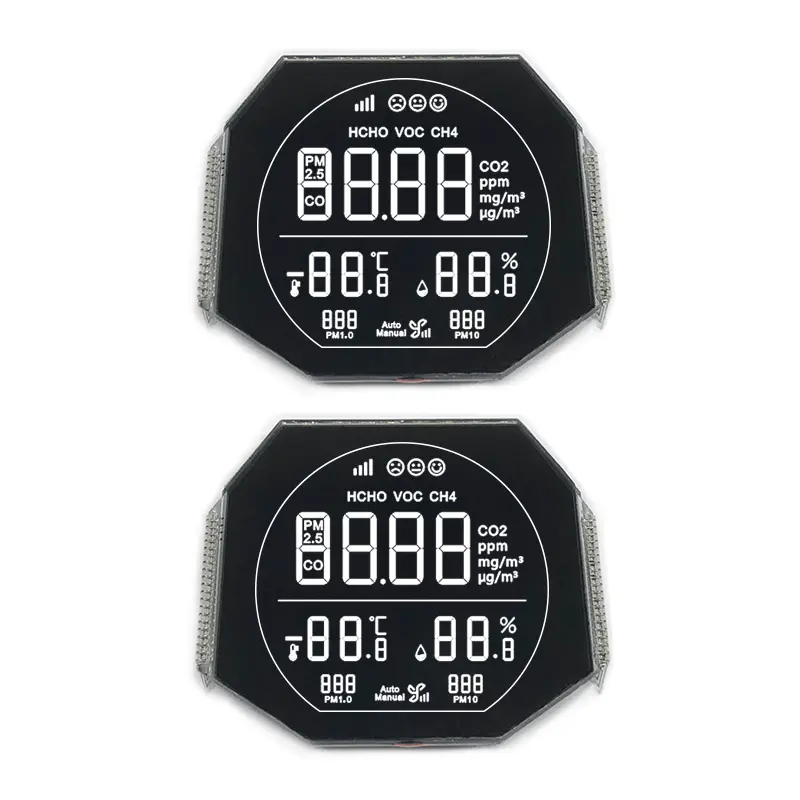

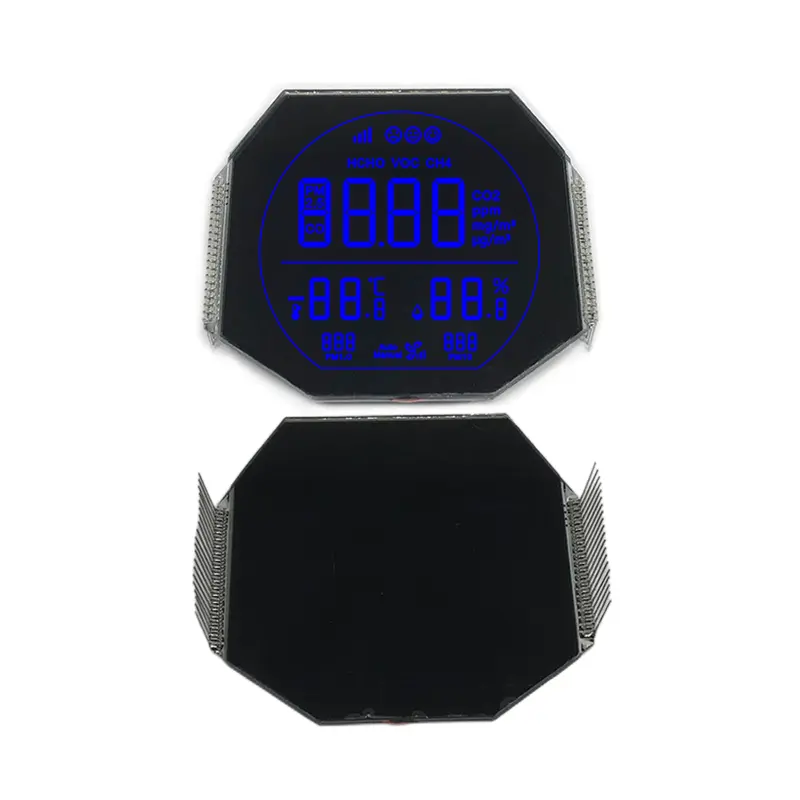

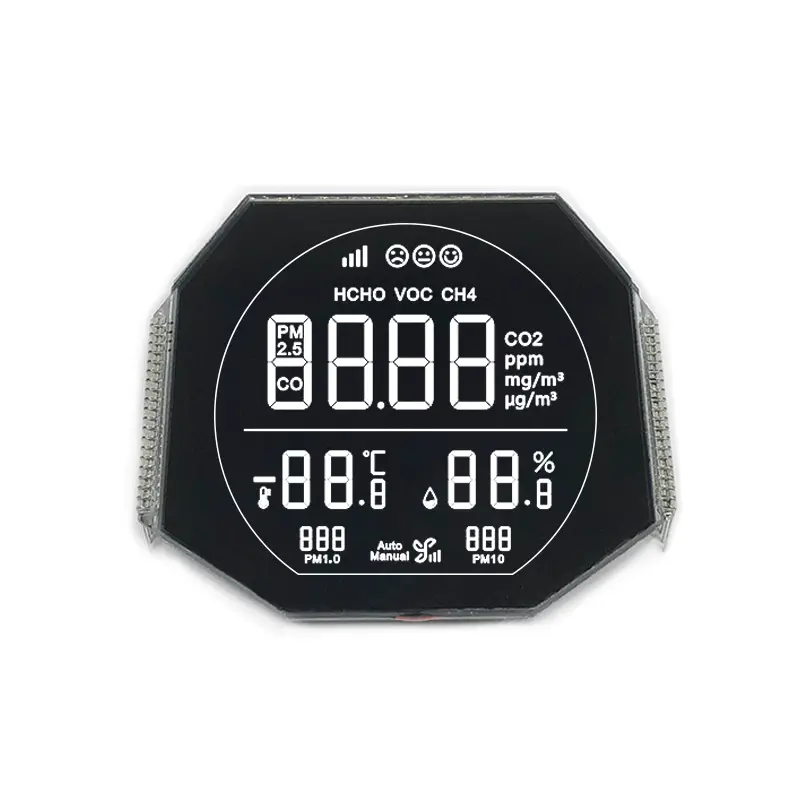

VA-15396 Customized LCD LCD screen: AC driven,Both the public side and the driver side need to add a shop-around signal, By changing the phase of the two to control whether the corresponding pixel is displayed,This is the essential difference with LED nixie tube,So there is no such thing as a common Yin or a common Yang. Never ground the common COM directly,Display by controlling the drive end to the high level,It is easy to damage the LCD screen for a long time.
| Manufacturer | XINNUOYA |

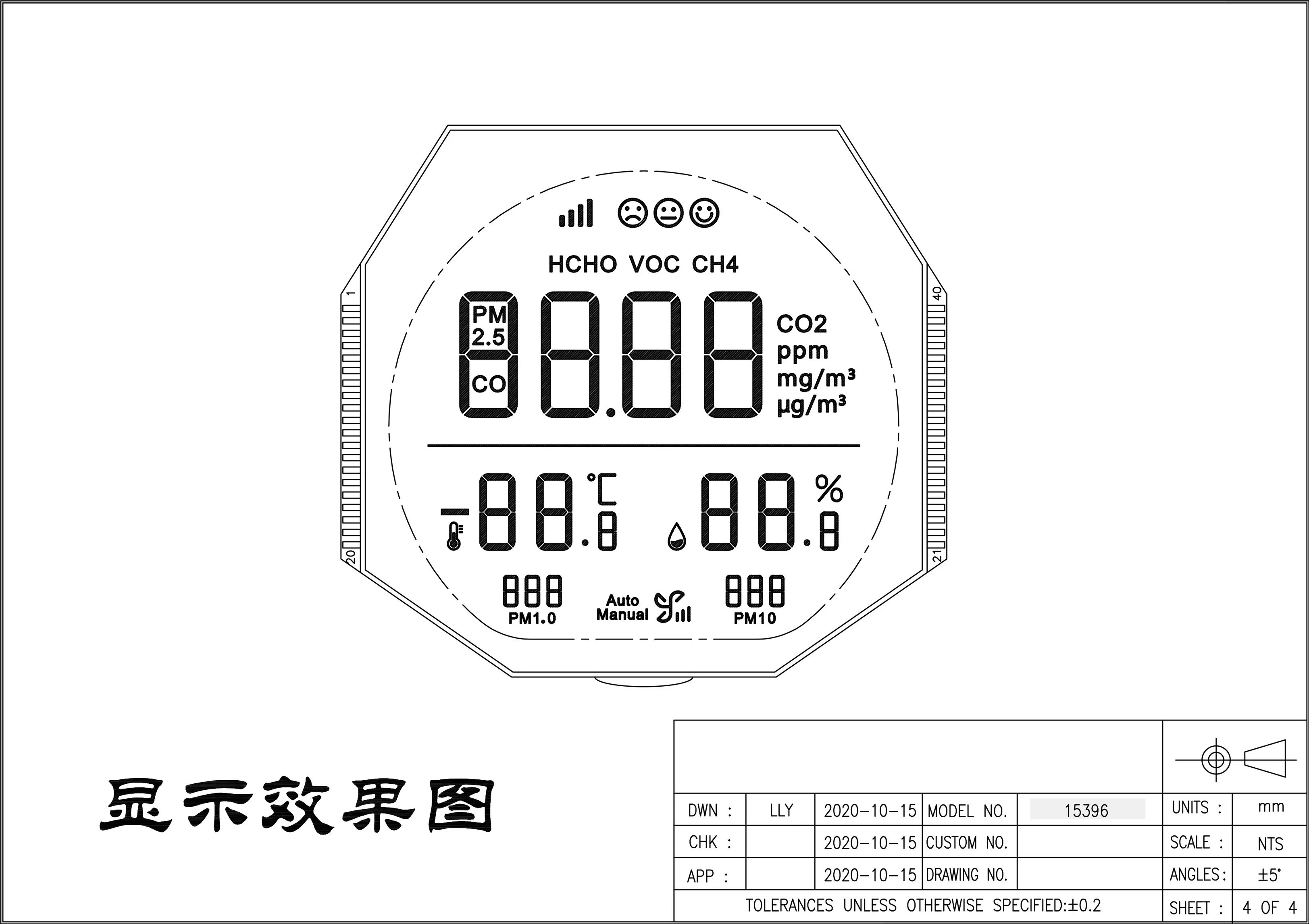

| Model | VA 15396 |
| Resolution | |

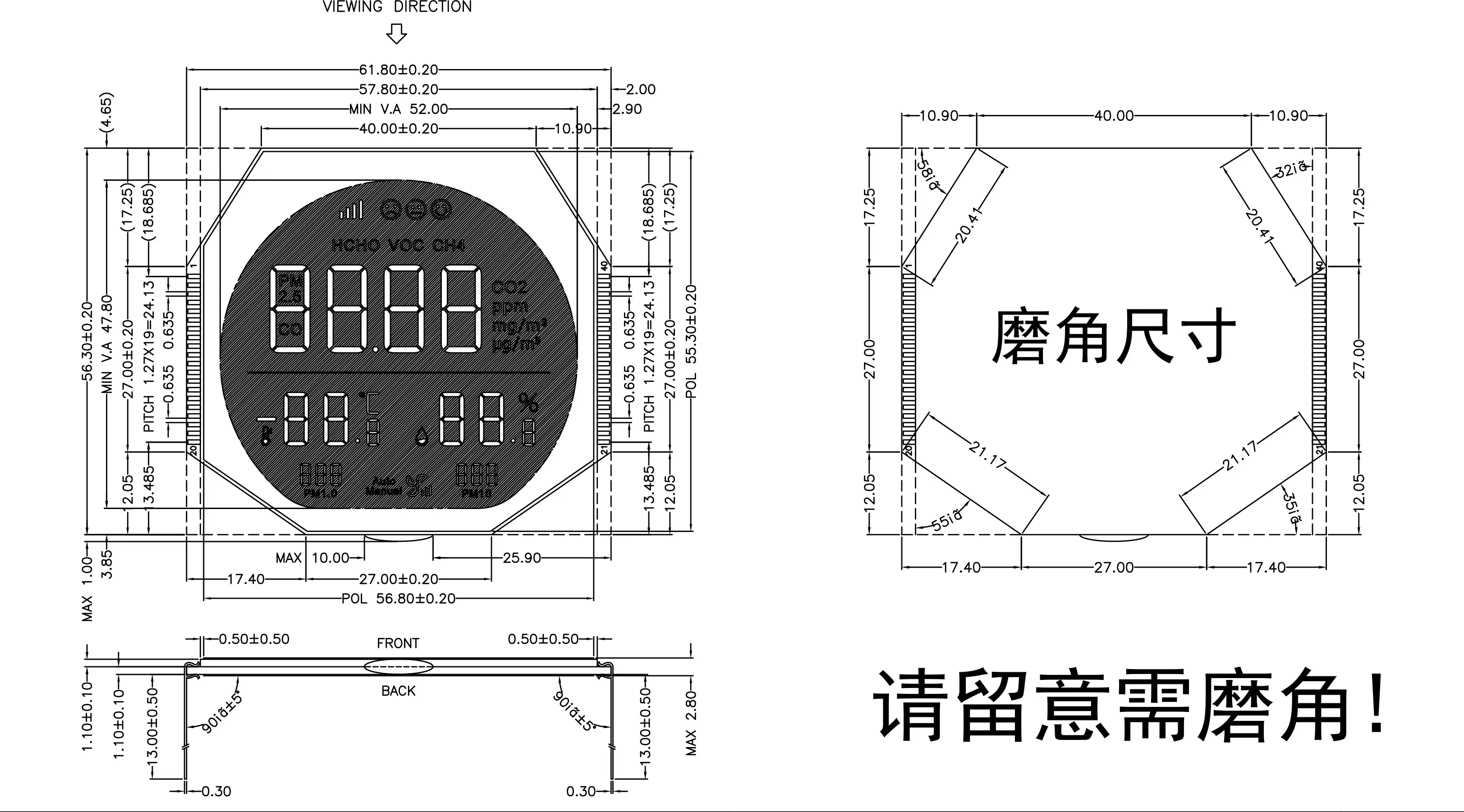

| Module Size | 61.8×56.3x 2.8 mm |
| Viewing Area | 52 x 47.8 mm |
| Type | Monochrome |
| Support Color |

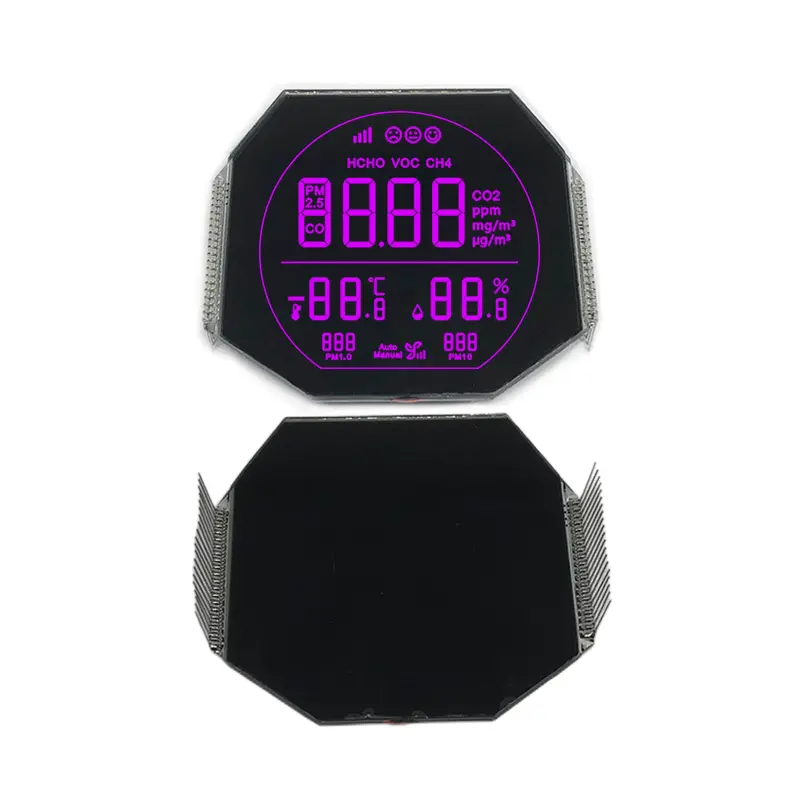

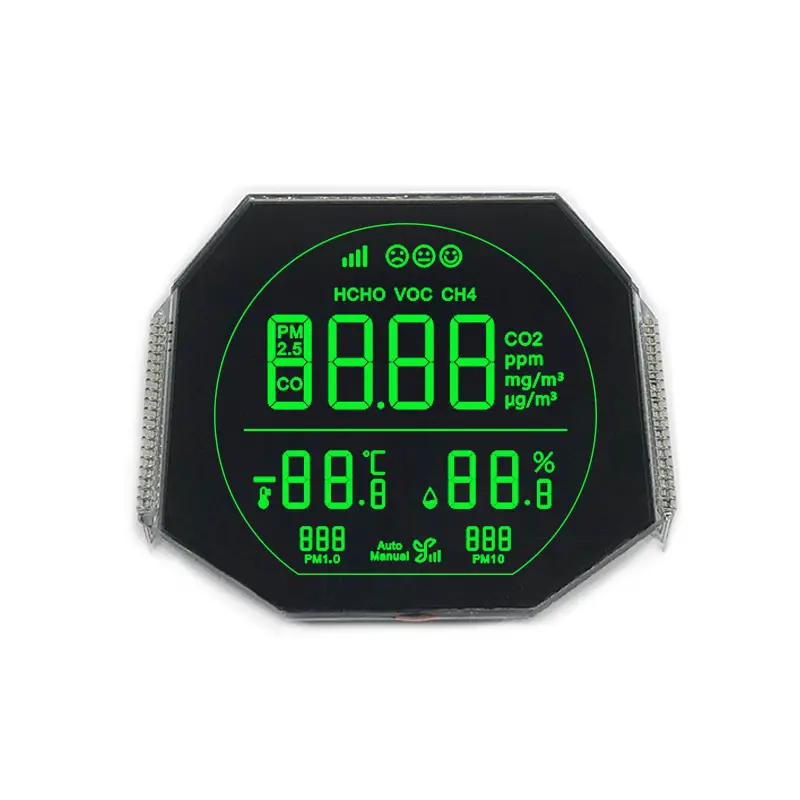

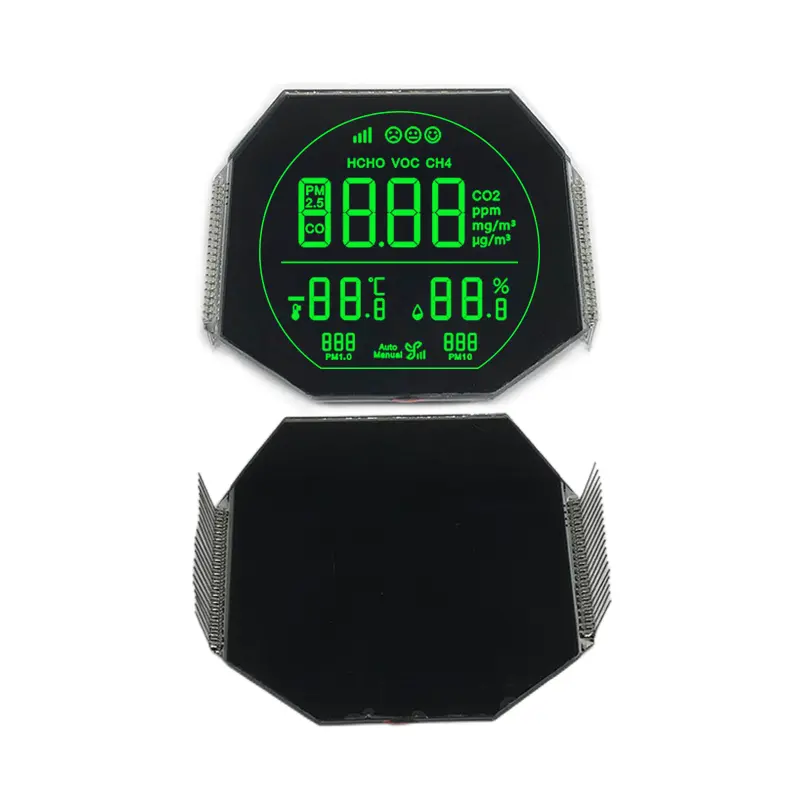

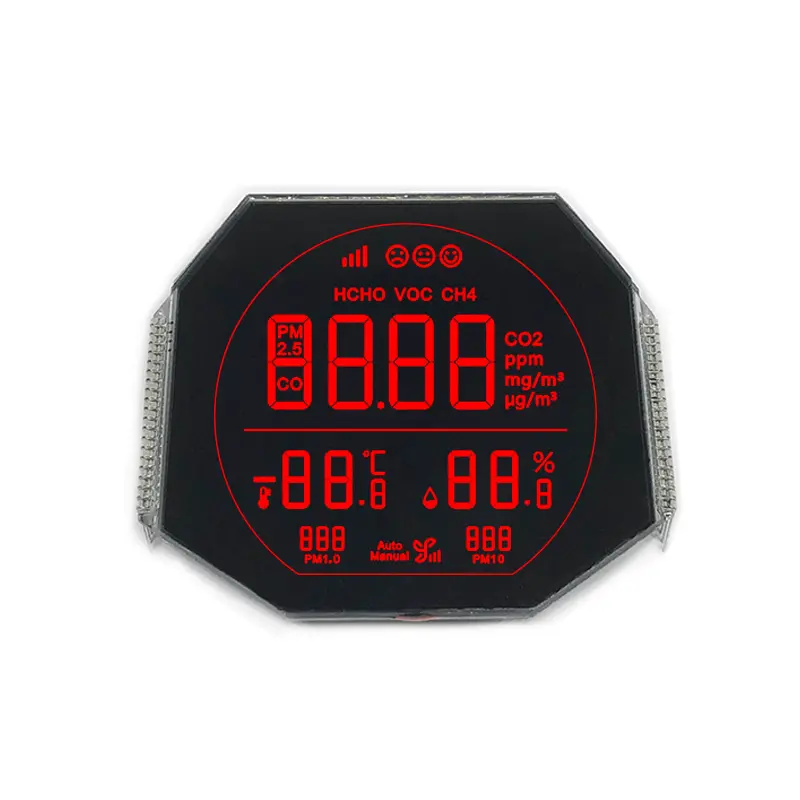

White, Orange, Blue, Yellow, Green, Purple，Red，Light Blue |
| Connector | parallel port |
| Operation temperature | 5V-3.3V |
| Controller | -20+70 |
| Controller |
Custom display |
| Touch Technology | / |
