It mainly uses NT7538 dynamic driving principle ,consist row drive and column drive both part composition 128(Column))x64(line)Full lattice LCD display, Operating voltage: 3.3-5V±10%，Can come with the positive voltage required to drive LCD, with CPU adopts 20-bit control bus. Suitable for 8080 series timing wiring mode, Internal show data latch. Simple operation instructions, shows switch setting, shows the start row Settings, The products are suitable for information telephone and other industries.

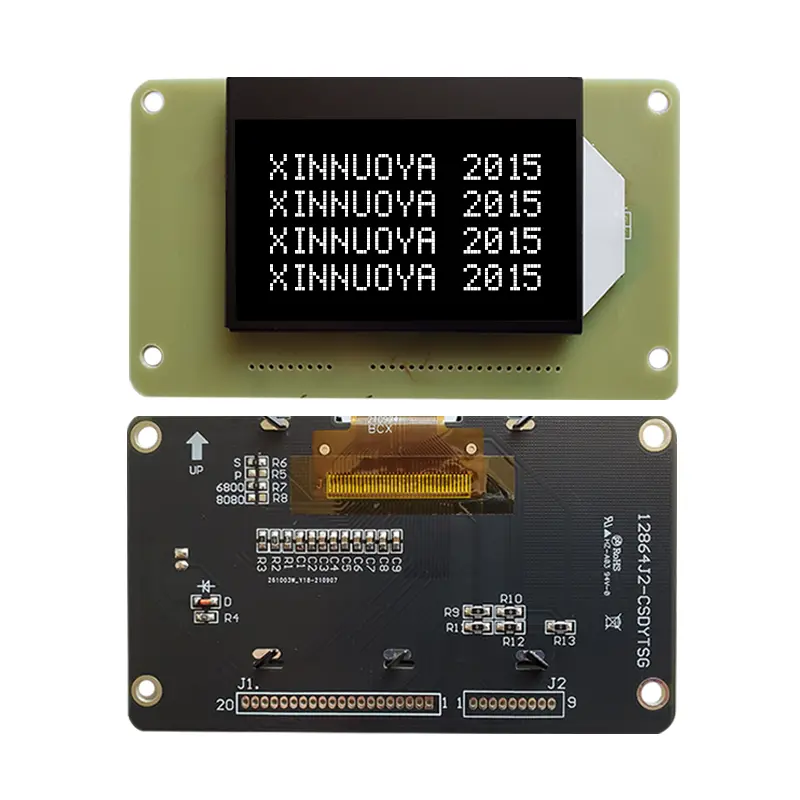

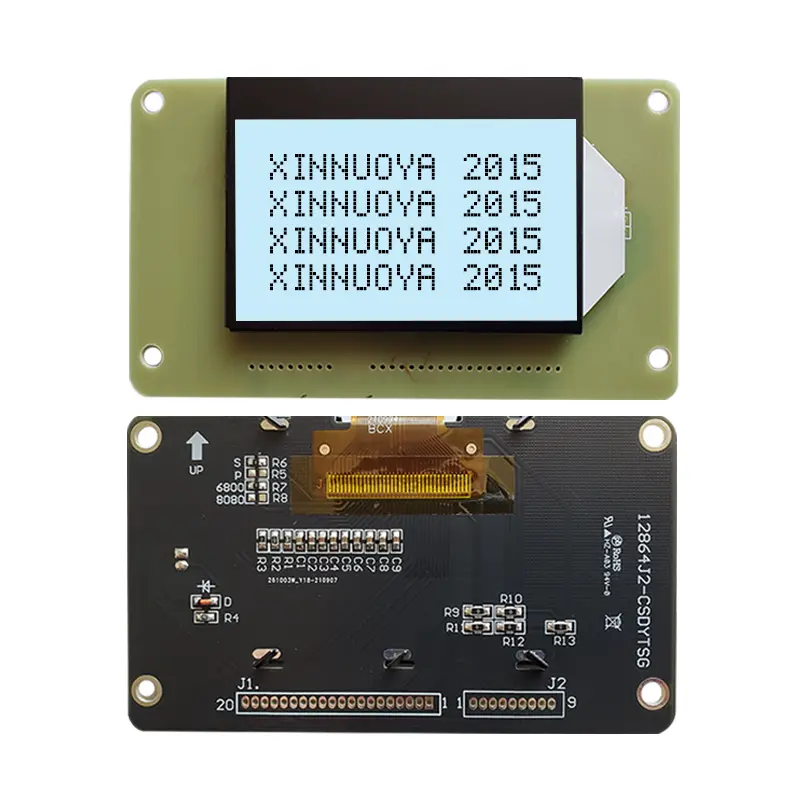

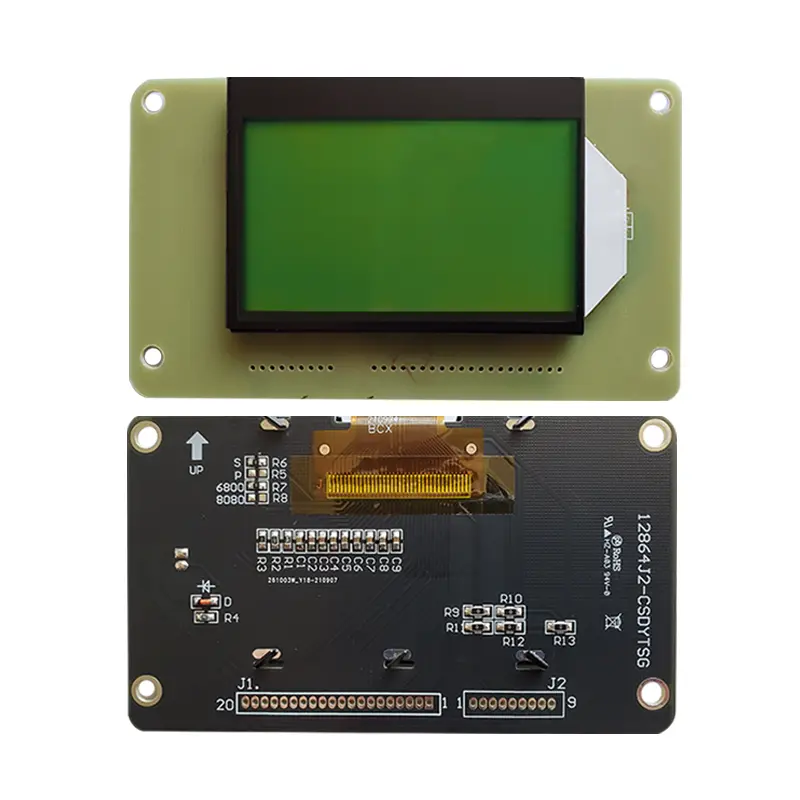

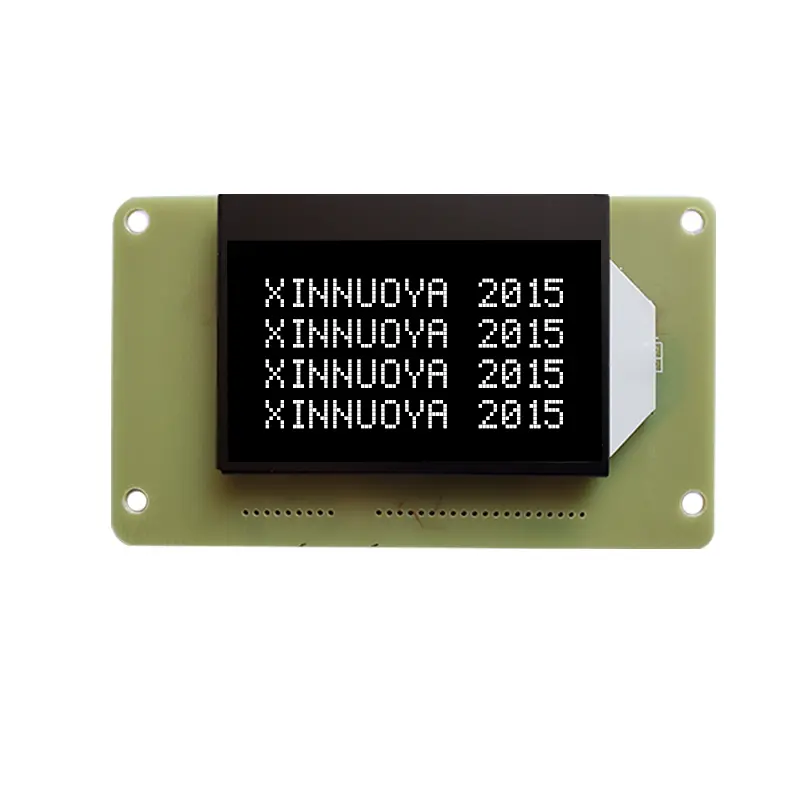

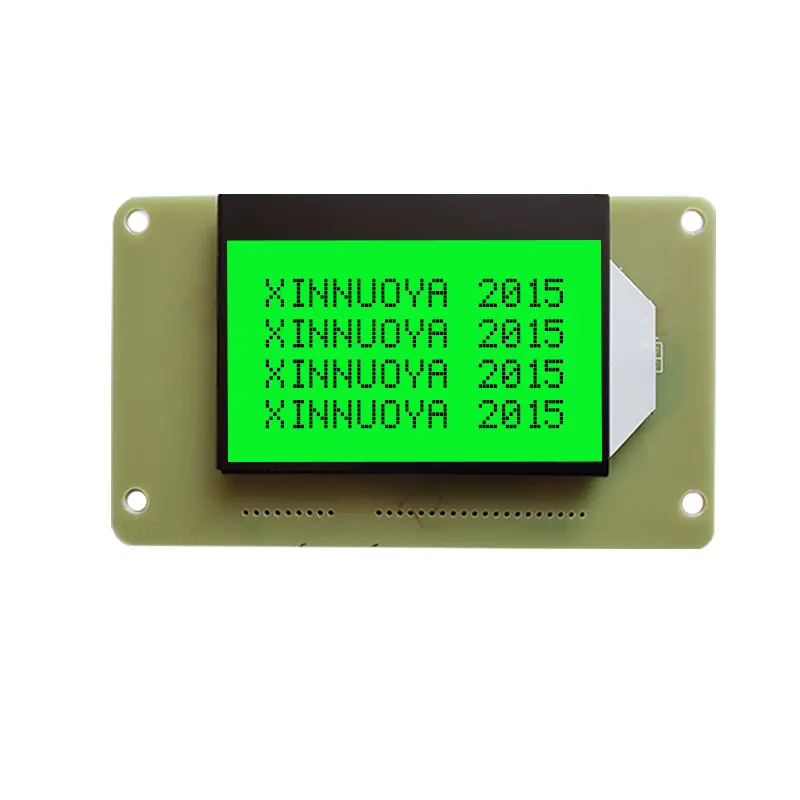

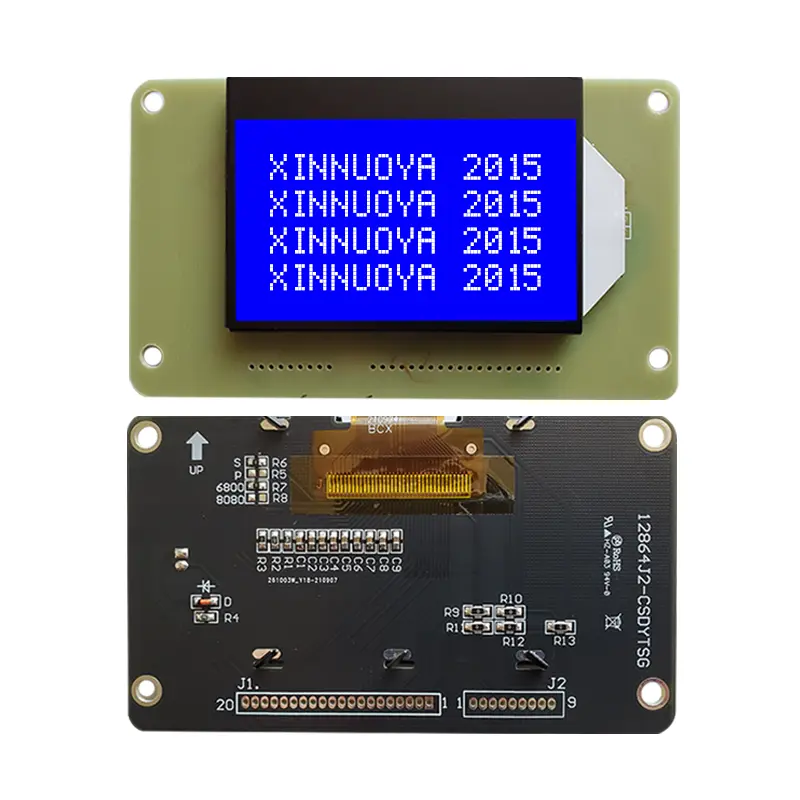

COG LCD 128×64 Graphic dots matrix display module 12864 cog lcd monocolor STN/TN/FSTN/HTN lcd with led backlight display screen
| Manufacturer | XINNUOYA |
| Model | COG12864J2-CSDYTSG |
| Resolution | 128×64 |
| Module Size | 113.88*66.52*9mm |
| Viewing Area | 65.5*38.0mm |
| Type | Monochrome |

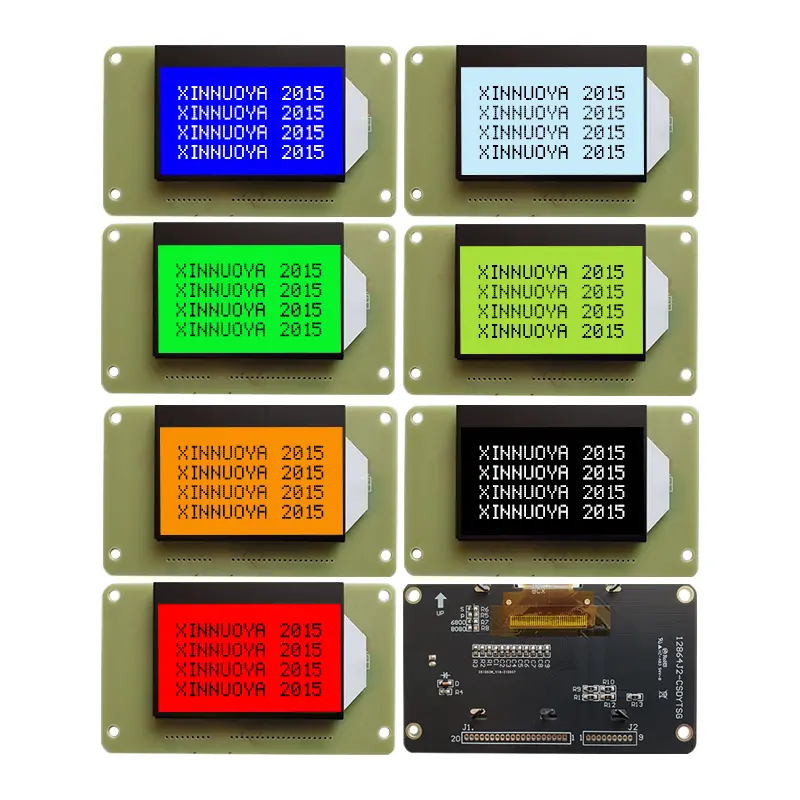

| Support Color |

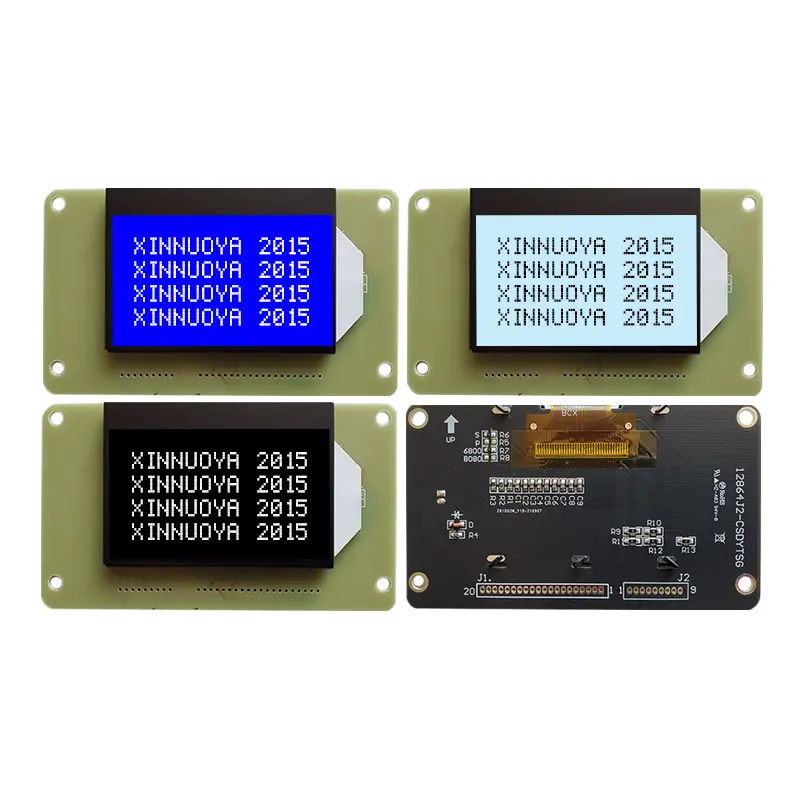

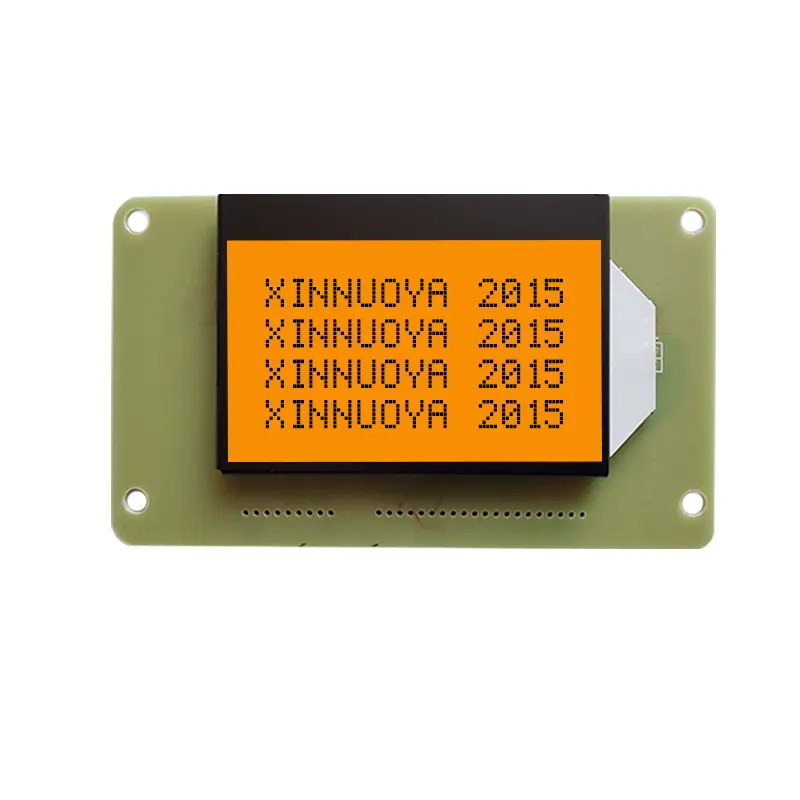

White, Orange, Blue, Yellow, Green, Purple，Red，Light Blue |
| Connector | parallel port |
| Operation temperature | 5V-3.3V |
| Controller | -20+70 |

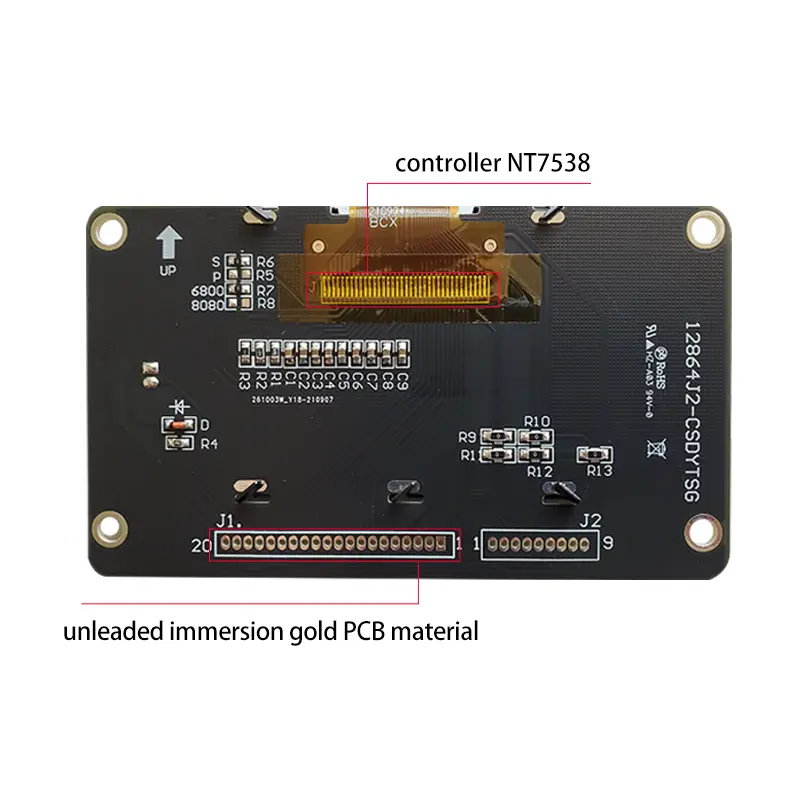

| Controller | NT7538 |
| Touch Technology | / |
