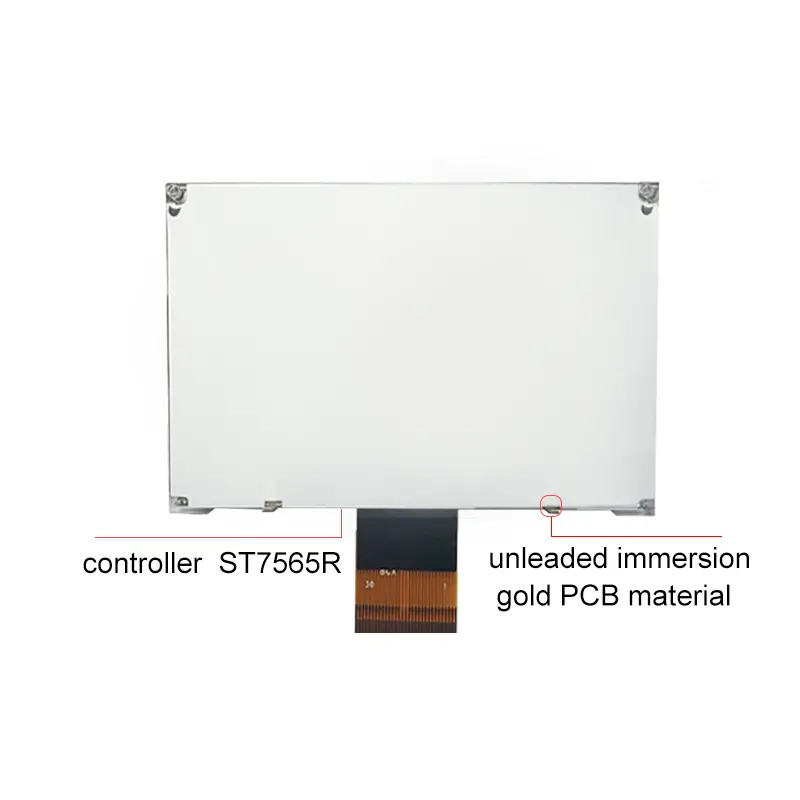

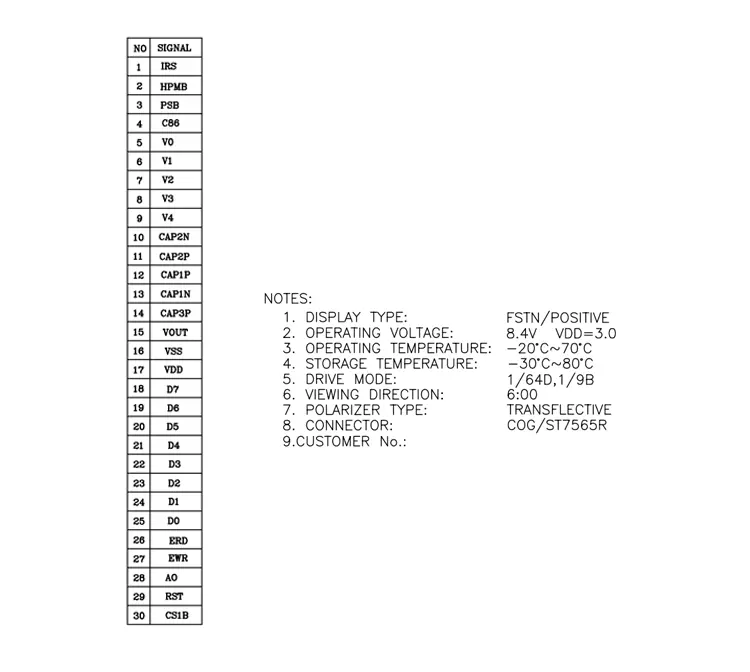

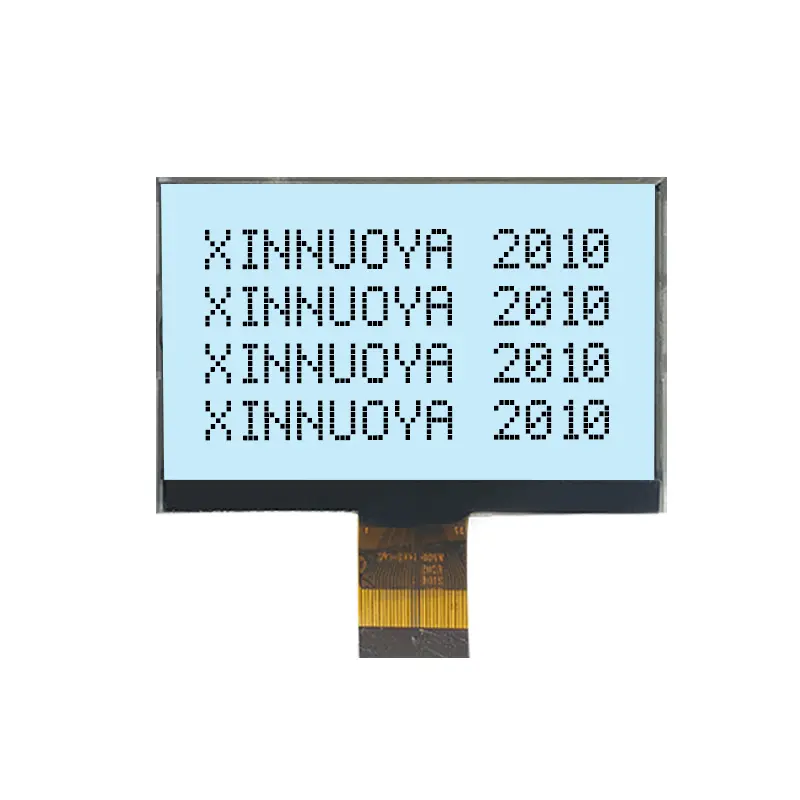

COG12864J1-CFDFSW is a graphic dot matrix Lcd Display. It mainly uses ST7565R dynamic driving principle , consist row drive and column drive both part composition 128(Column))x64(line)Full lattice LCD display, Operating voltage: 3.3-5V±10%，Can come with the positive voltage required to drive LCD, with CPU adopts 30-bit control bus. Suitable for 8080 series timing, using Parallel port wiring mode, Internal show data latch. Simple operation instructions, shows switch setting, shows the start row Settings, Products are suitable for all kinds of equipment and controller industries.
128×64 Dot Matrix COG LCD module screen White LED Backlight 12864 COG Graphic Serial SPI LCD display Module ST7567
| Manufacturer | XINNUOYA |
| Model | COG12864J1-CFDFSW |
| Resolution | 128×64 |

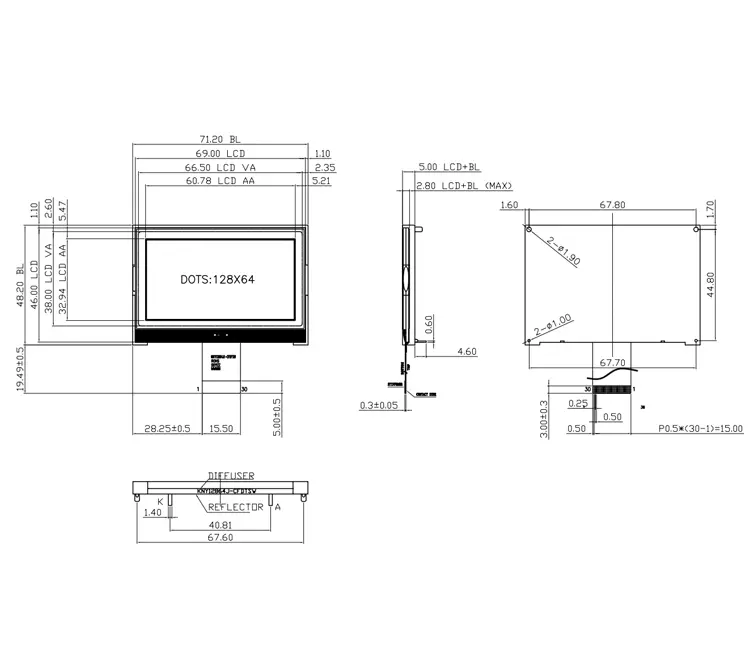

| Module Size | 71.2*48.2*5mm |
| Viewing Area | 60.78*32.94mm |
| Type | Monochrome |

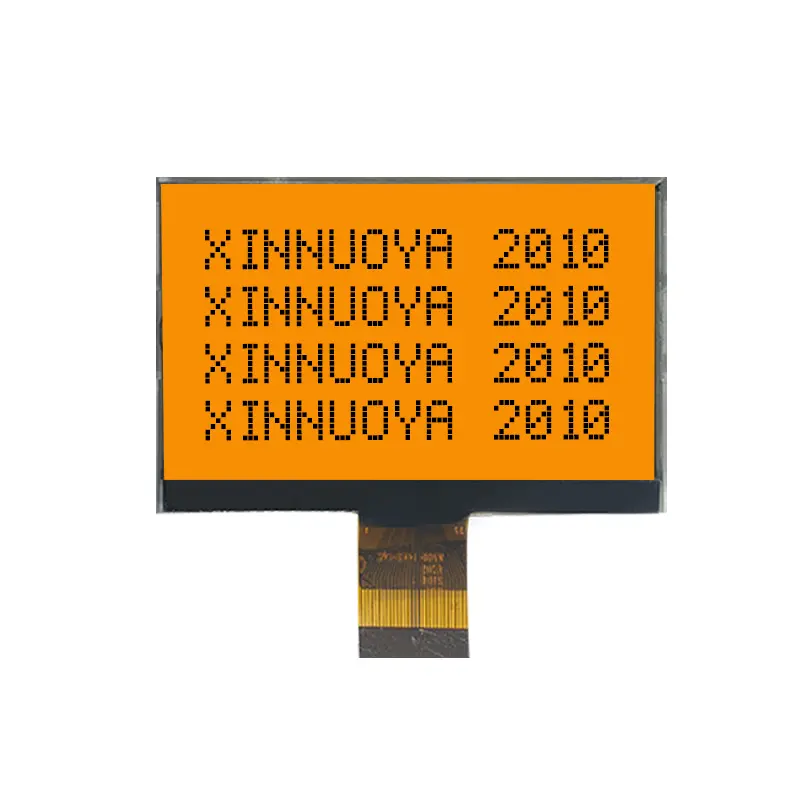

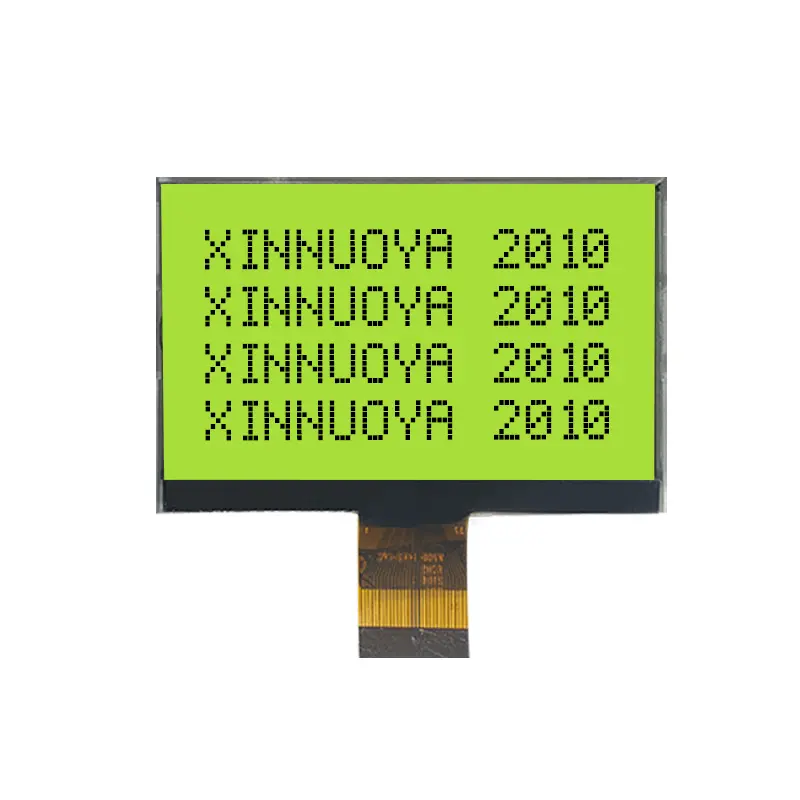

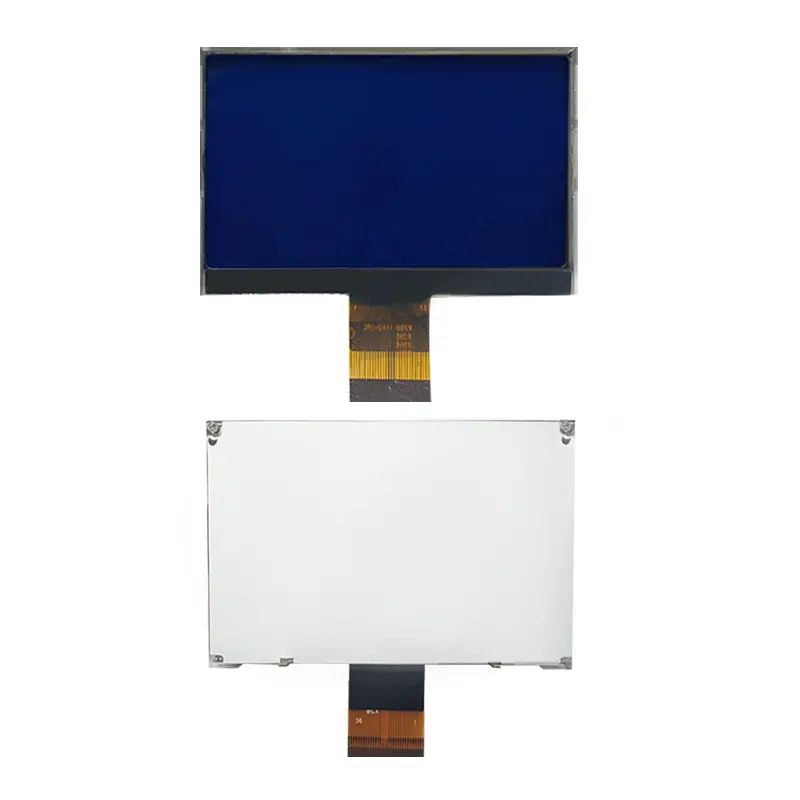

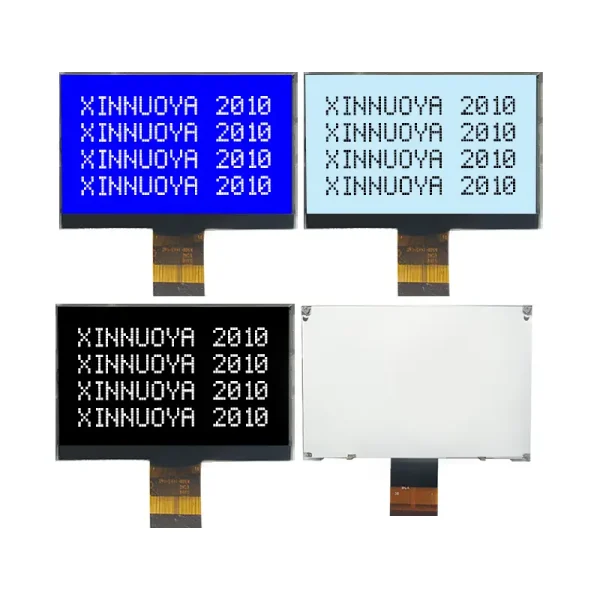

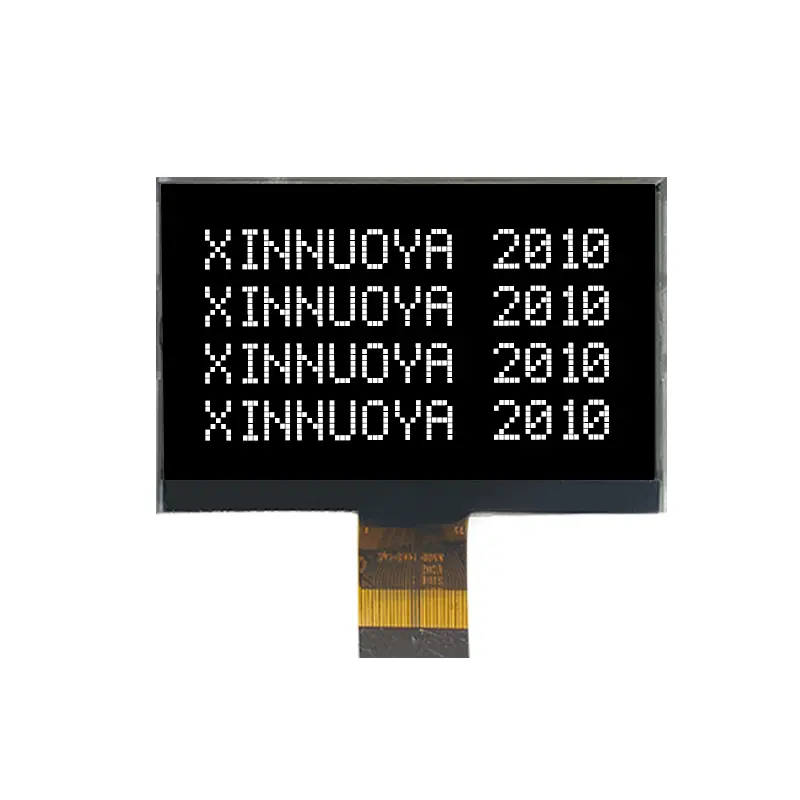

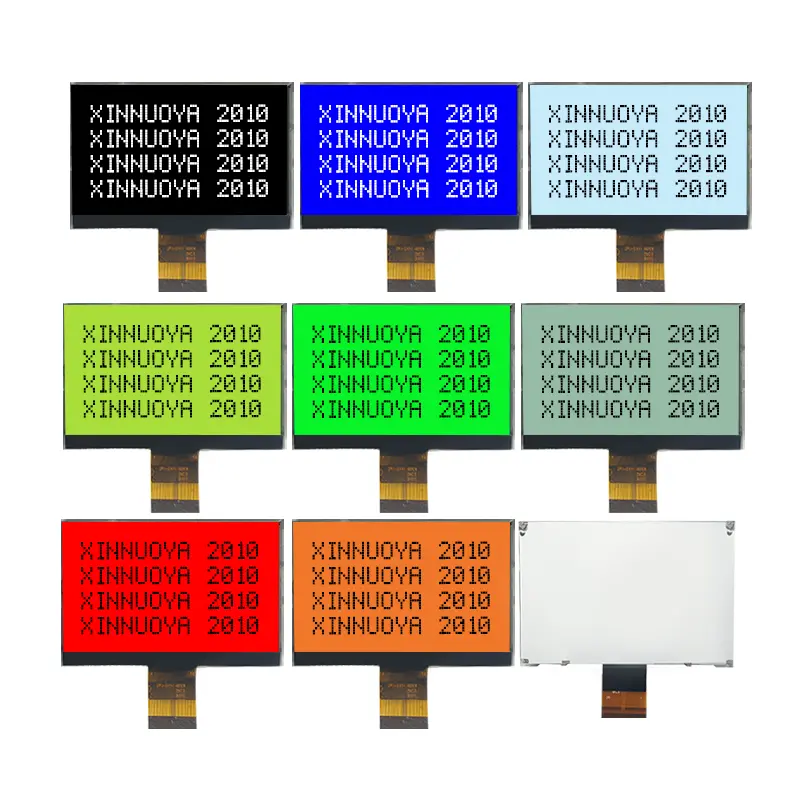

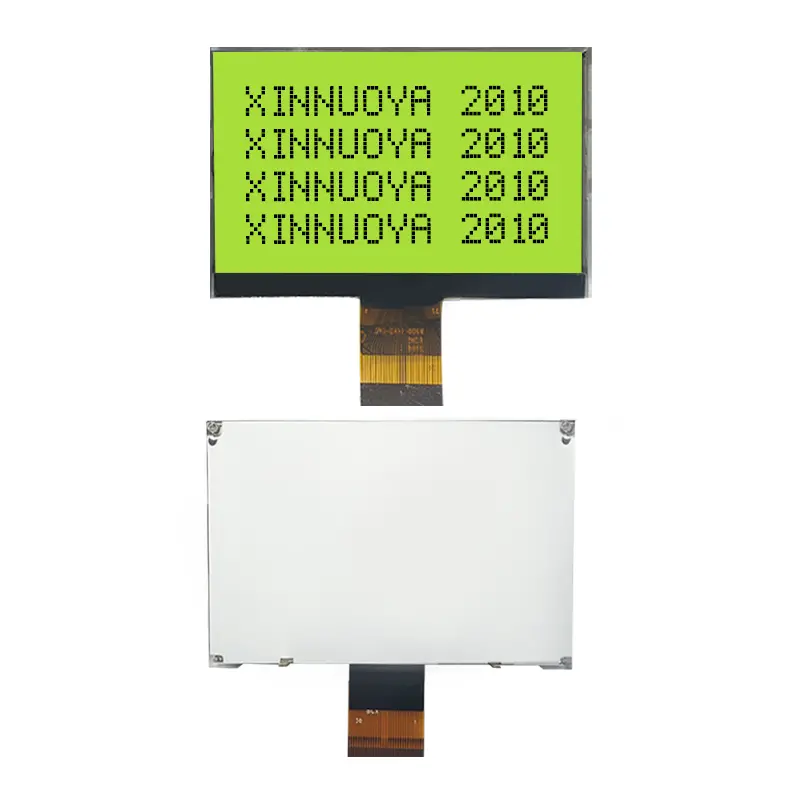

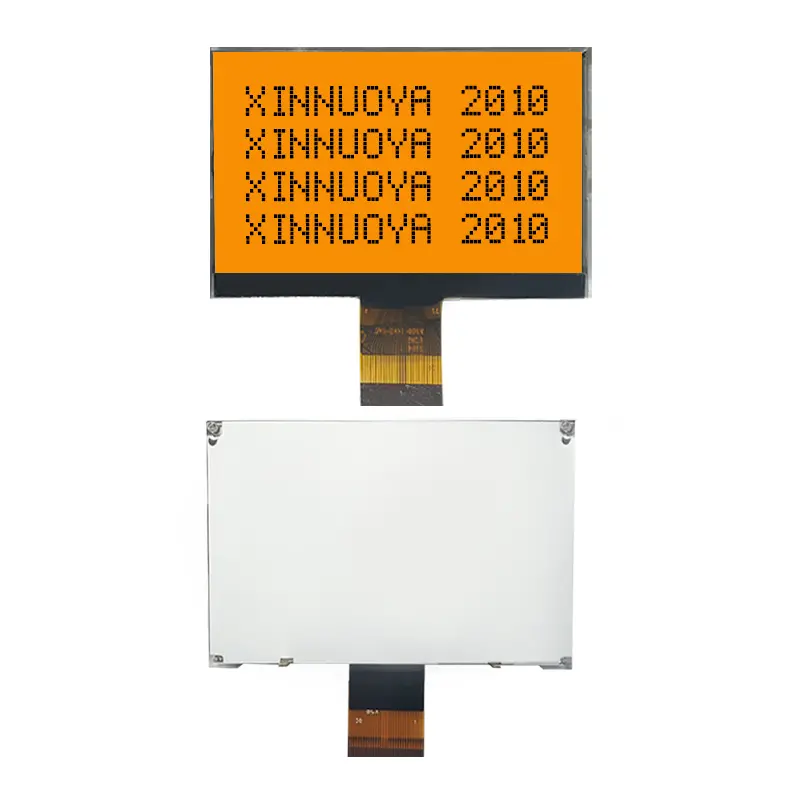

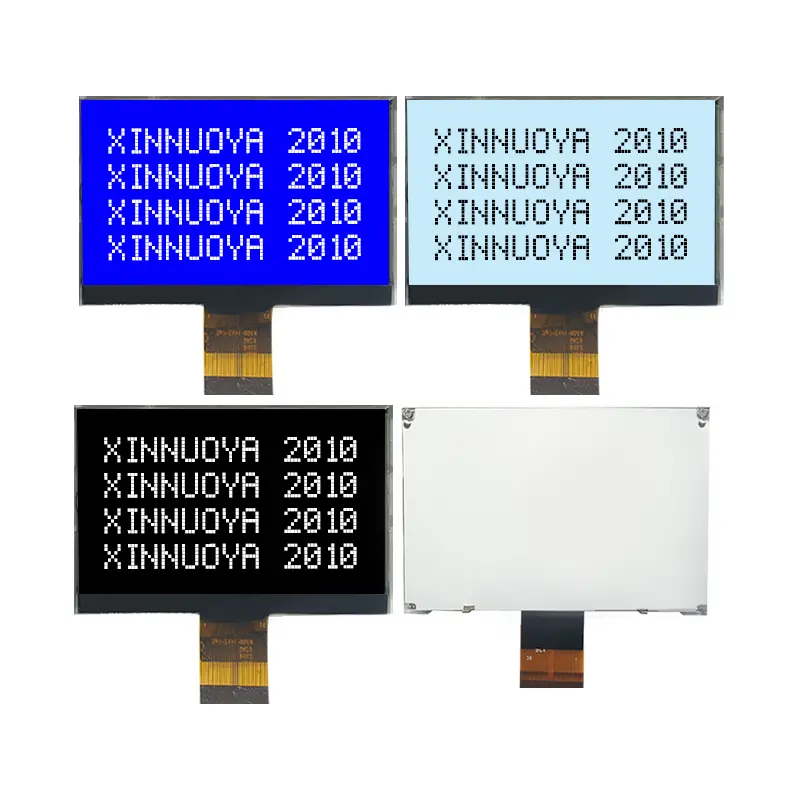

| Support Color |
White, Orange, Blue, Yellow, Green, Purple，Red，Light Blue |
| Connector | parallel port |
| Operation temperature | 5V-3.3V |
| Controller | -20+70 |
| Controller | ST7565R |
| Touch Technology | / |
