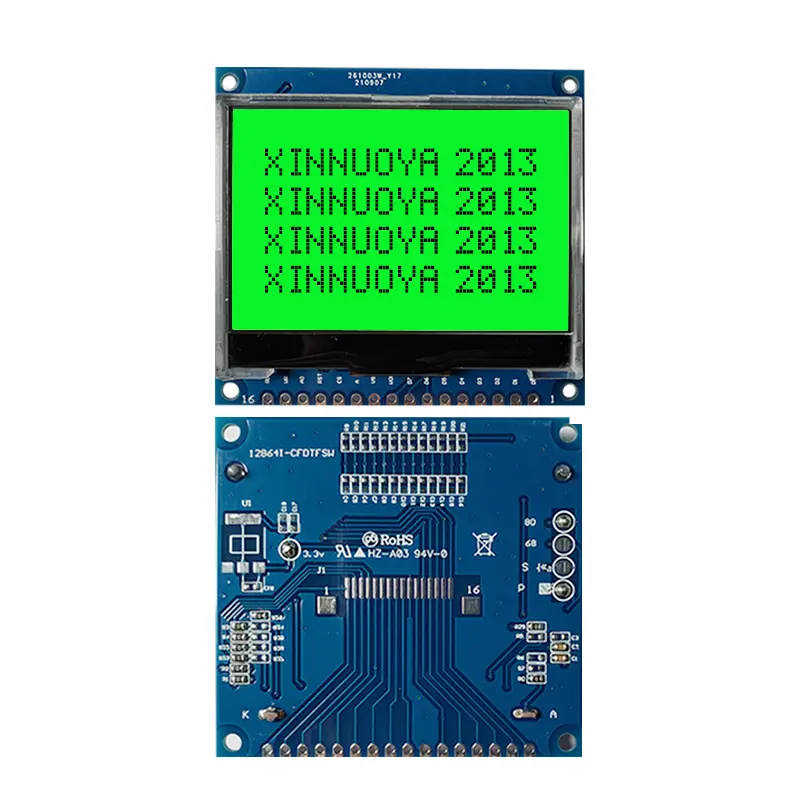

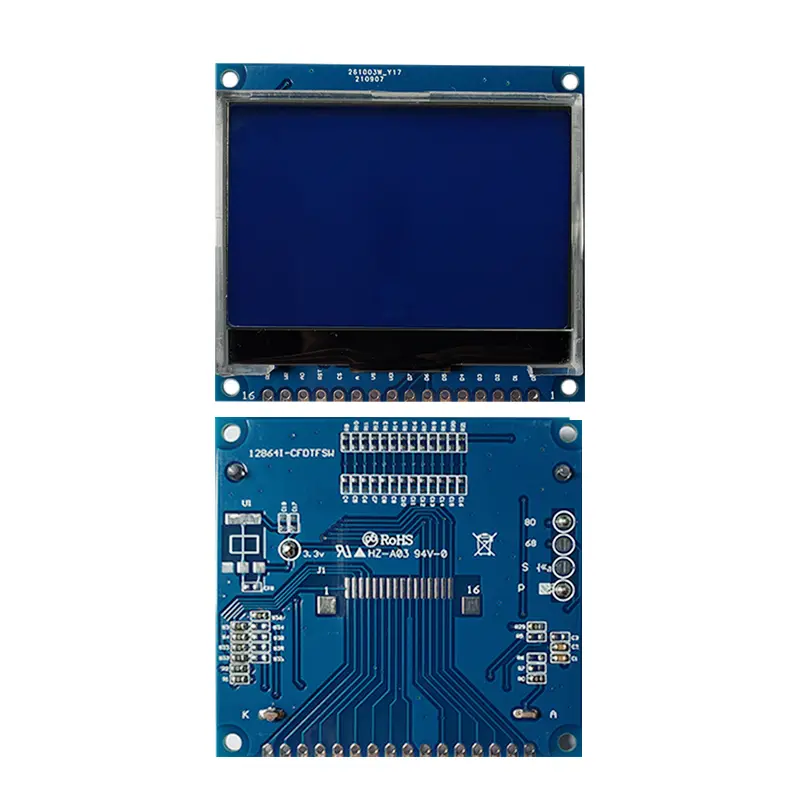

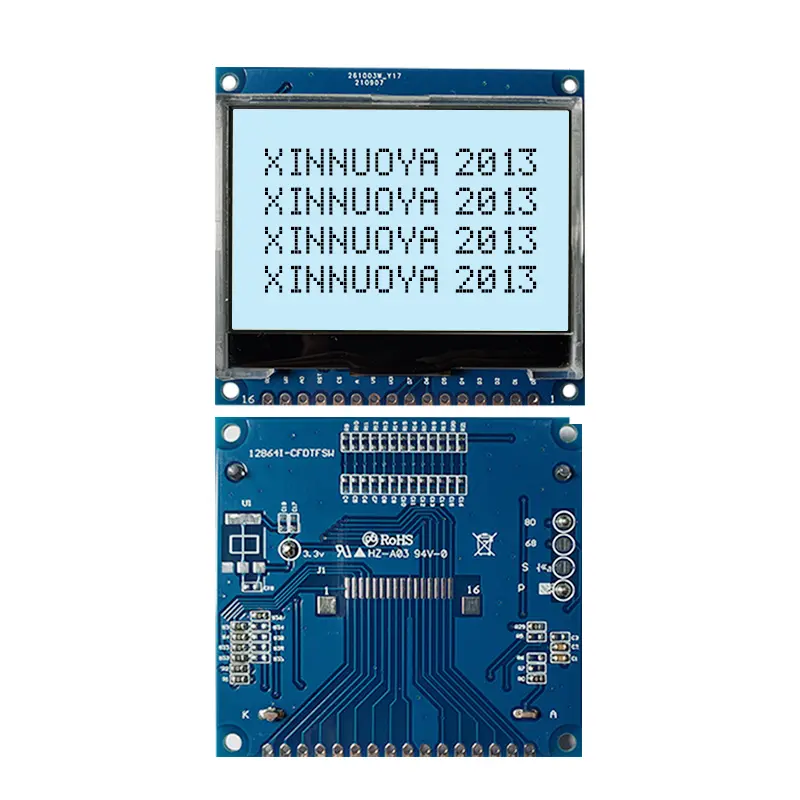

COG12864I-CFDTFSW is a graphic dot matrix Lcd Display. It mainly uses ST7565S dynamic driving principle , consist row drive and column drive both part composition 128(Column))x64(line)Full lattice LCD display, Operating voltage: 3.3-5V±10%，Can come with the positive voltage required to drive LCD, with CPU adopts 7-bit control bus. Suitable for 8080 series timing ,using serial wiring mode, Internal show data latch. Simple operation instructions, shows switch setting, shows the start row Settings, Supports two communication modes: serial port and parallel port
128×64 Dot Matrix COG White LED Backlight 12864 COG Graphic Serial SPI LCD Module Display ST7567
| Manufacturer | XINNUOYA |
| Model | COG12864I-CFDTFSW |
| Resolution | 128*64 |

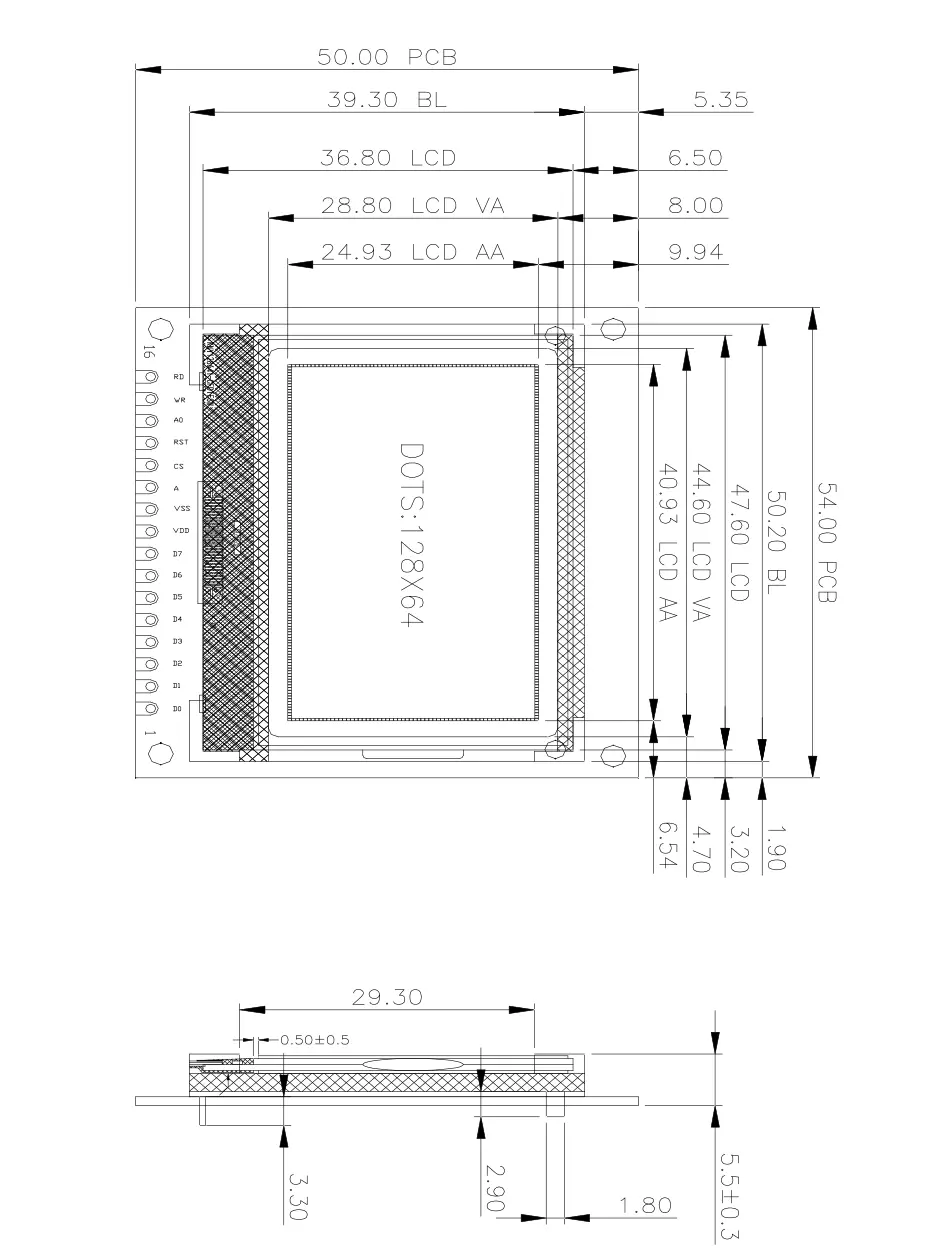

| Module Size | 54.0*50.0*5.5mm |
| Viewing Area | 44.6*28.8mm |
| Type | Monochrome |
| Support Color |

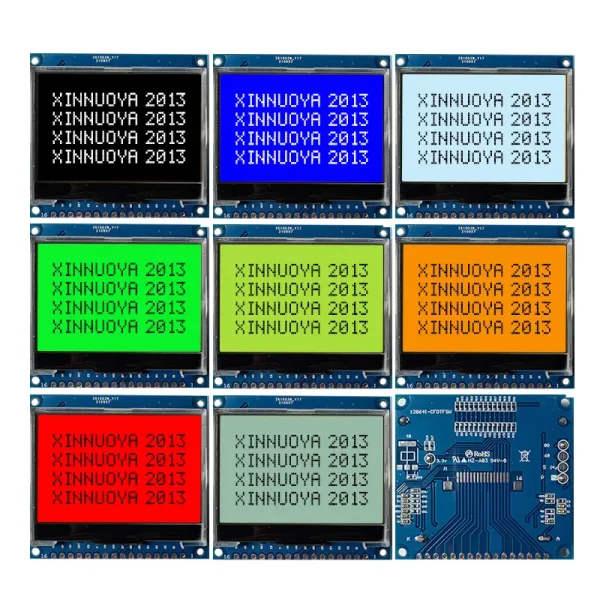

White, Orange, Blue, Yellow, Green, Purple，Red，Light Blue |
| Connector | parallel port |
| Operation temperature | 5V-3.3V |
| Controller | -20+70 |
| Controller | ST7567S |
| Touch Technology | / |
