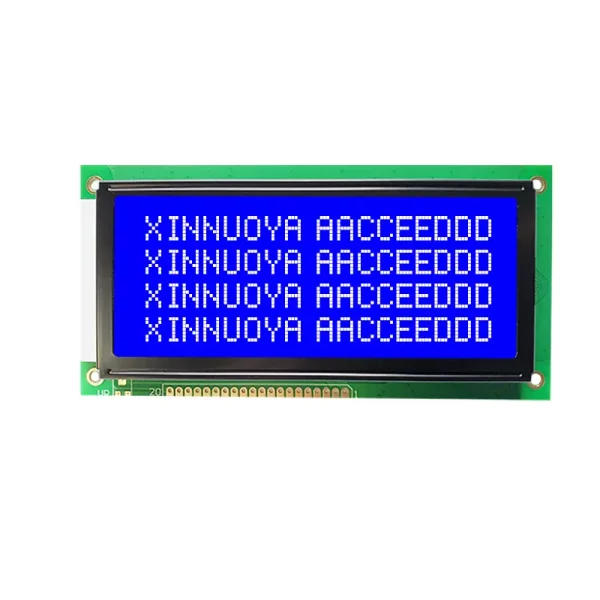

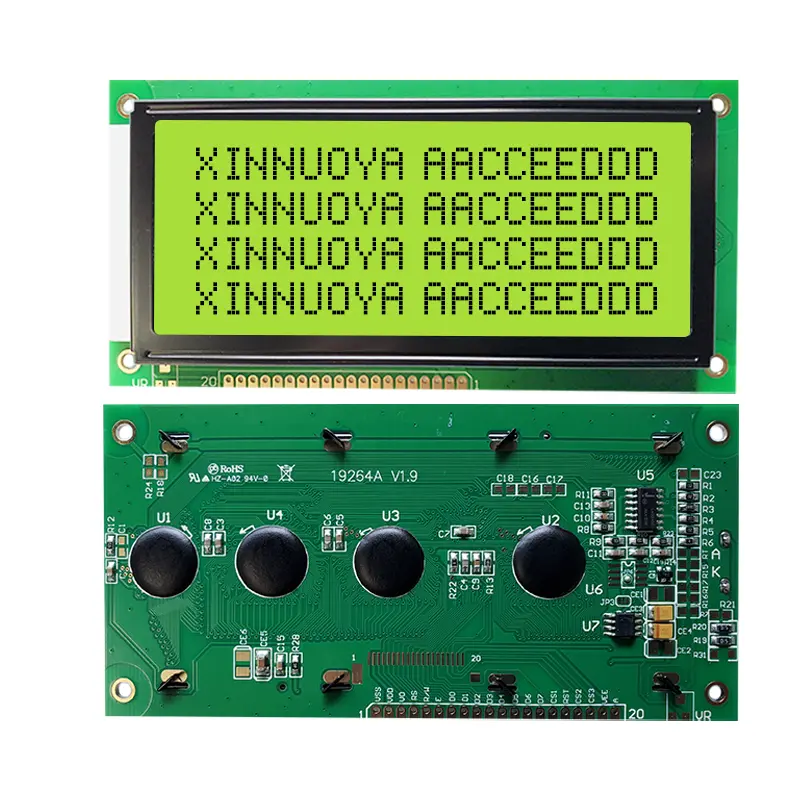

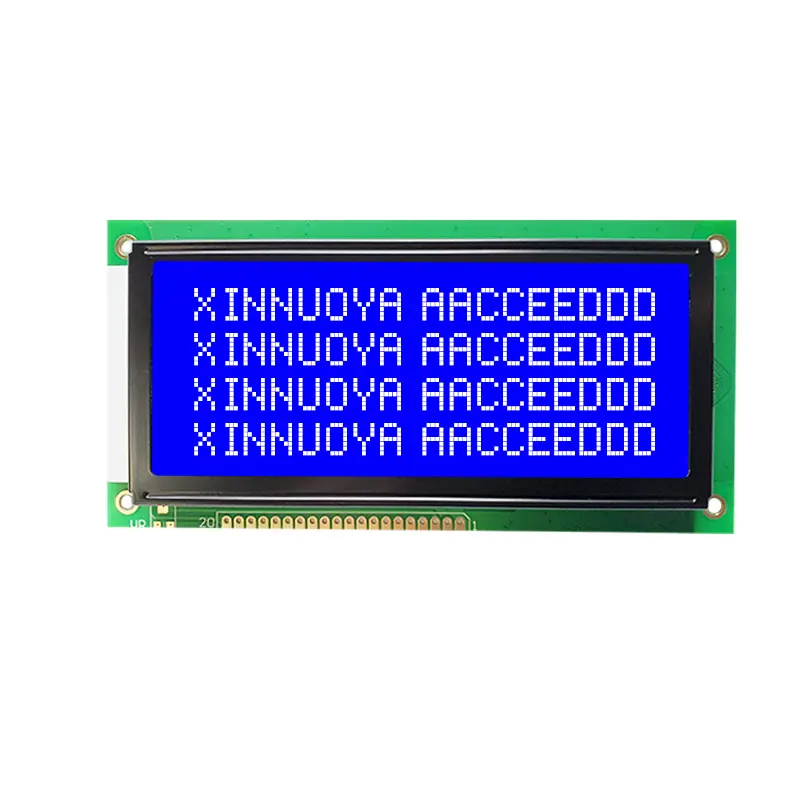

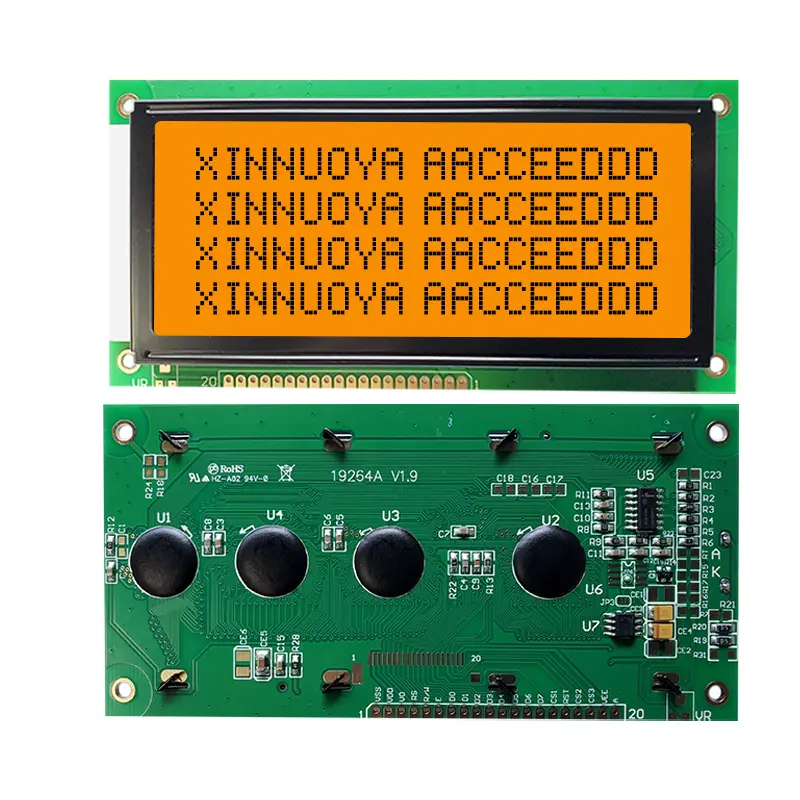

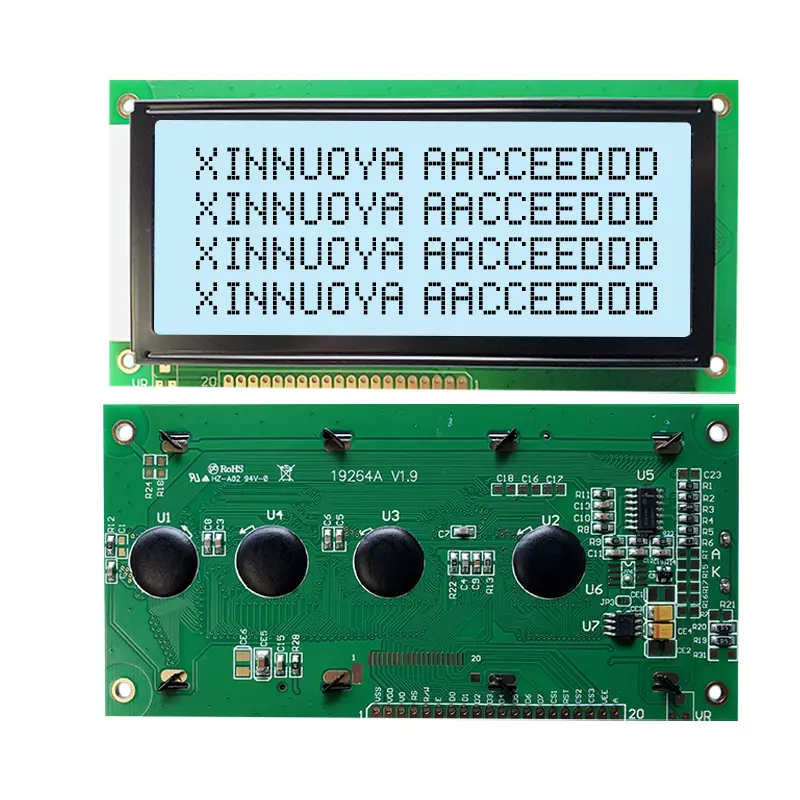

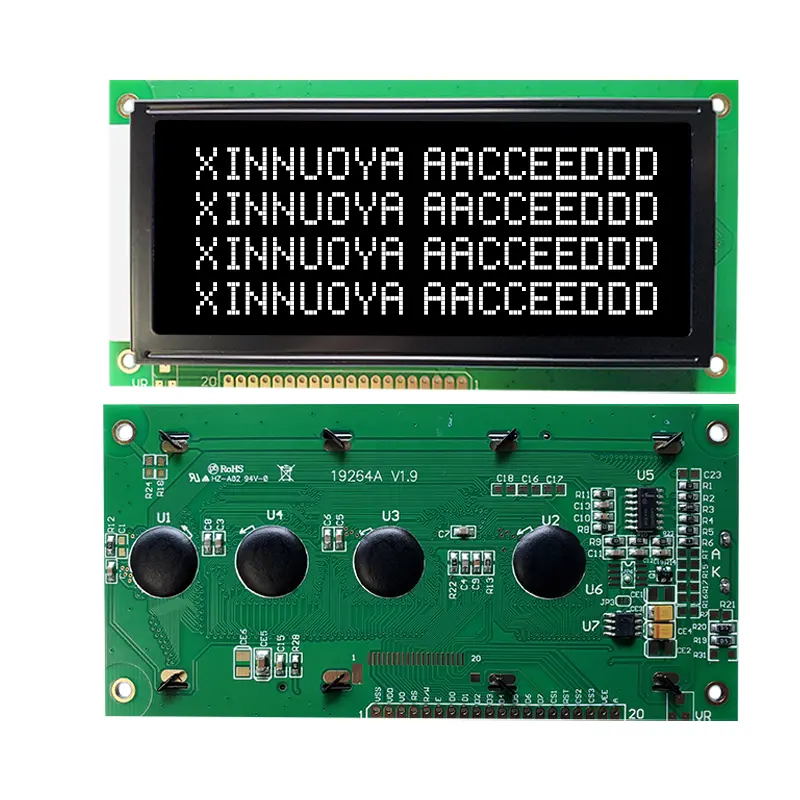

It consists mainly of line drives/Column driver and 192×64 Full lattice LCD display composition.Graphical show can be completed, Can also show 12×4 pcs (16X16dot matrix )hinese character.

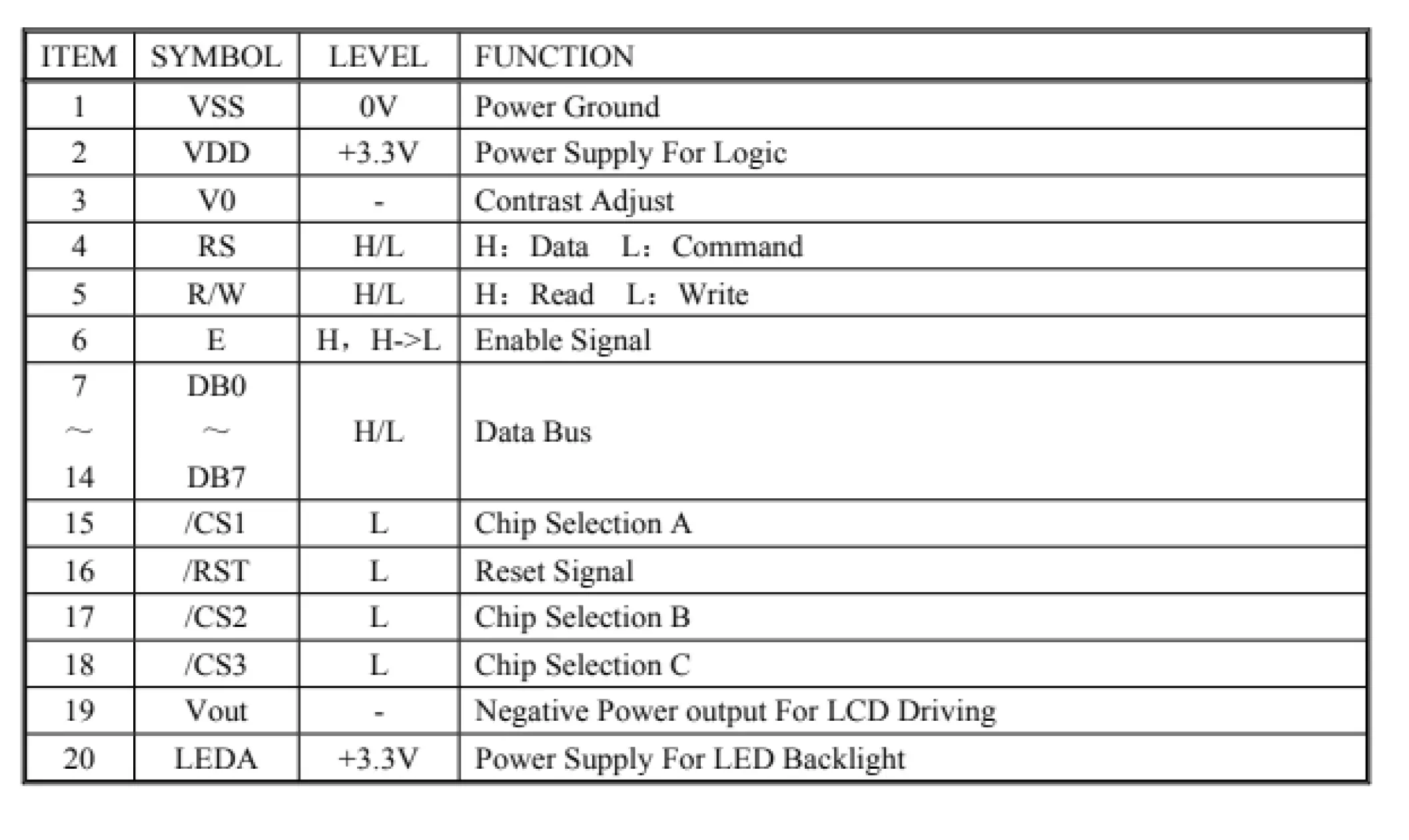

Main technical parameters and performance: Power supply:VDD:+5V-3V show content:192(Column)x64(line)Full screen lattice, seven appoint , with CPU interface uses 8-bit data bus parallel input and output and 8 control lines, Duty Ratio 164,
Operating temperature:-20℃m:+70℃ Storage temperature:-30℃+80℃

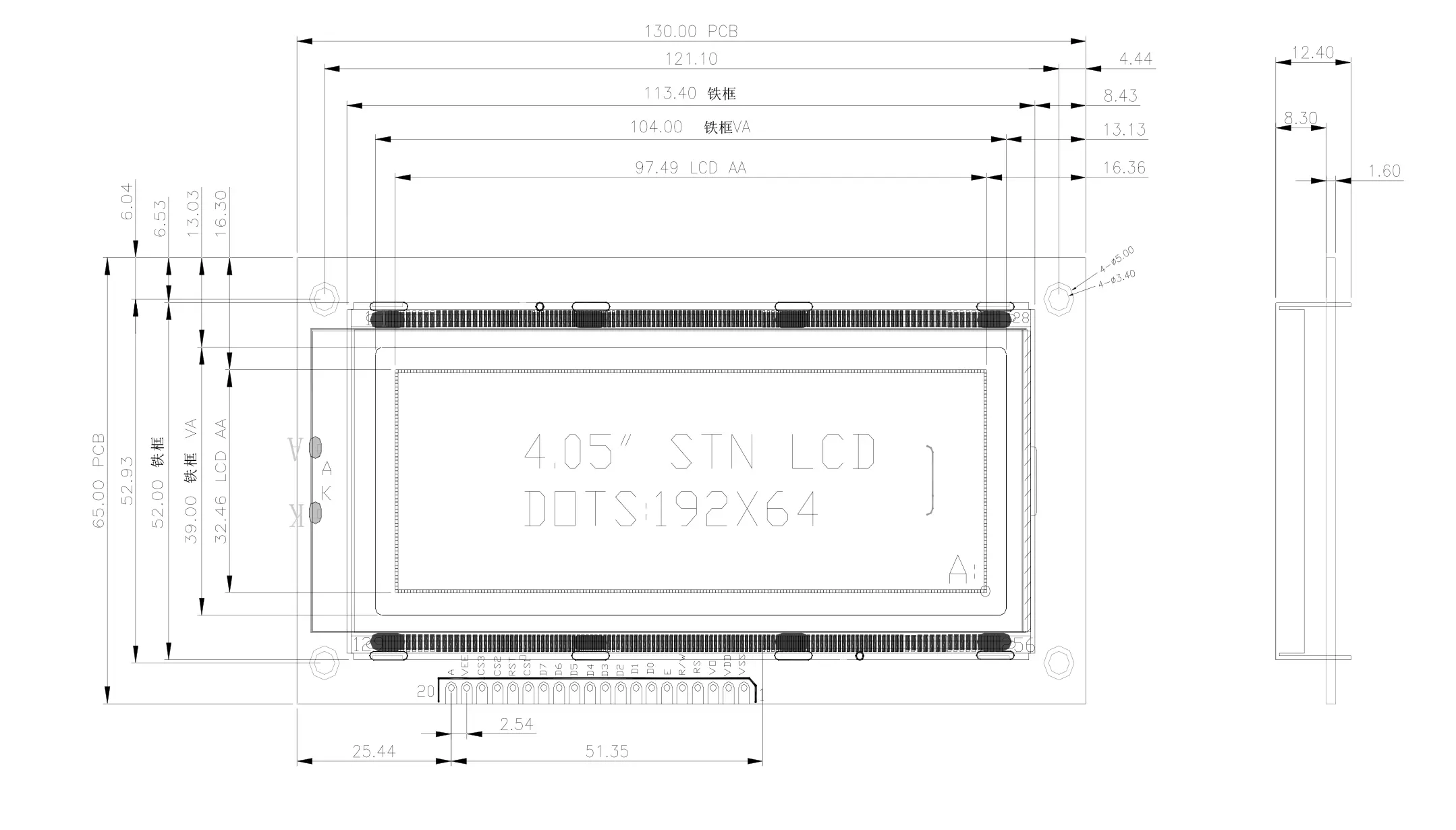

outside dimension:130MM*65MM*12.5MM

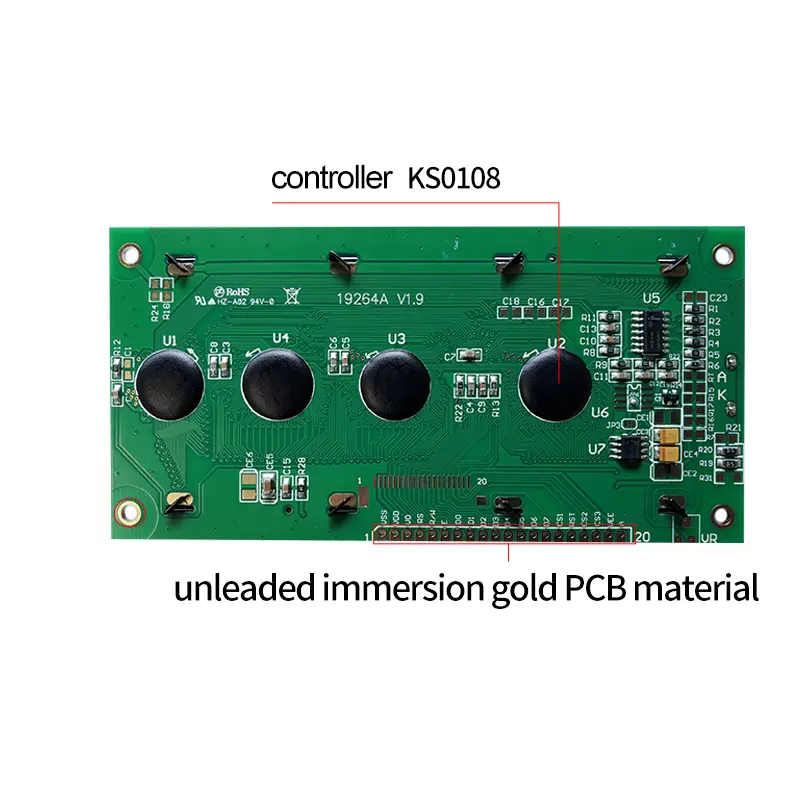

Controller: KS0108 NT7108 SBN6400 AIP31108，
Suitable for instrumentation and other industries
Suitable for smart instrument and other industries
| Manufacturer | XINNUOYA |

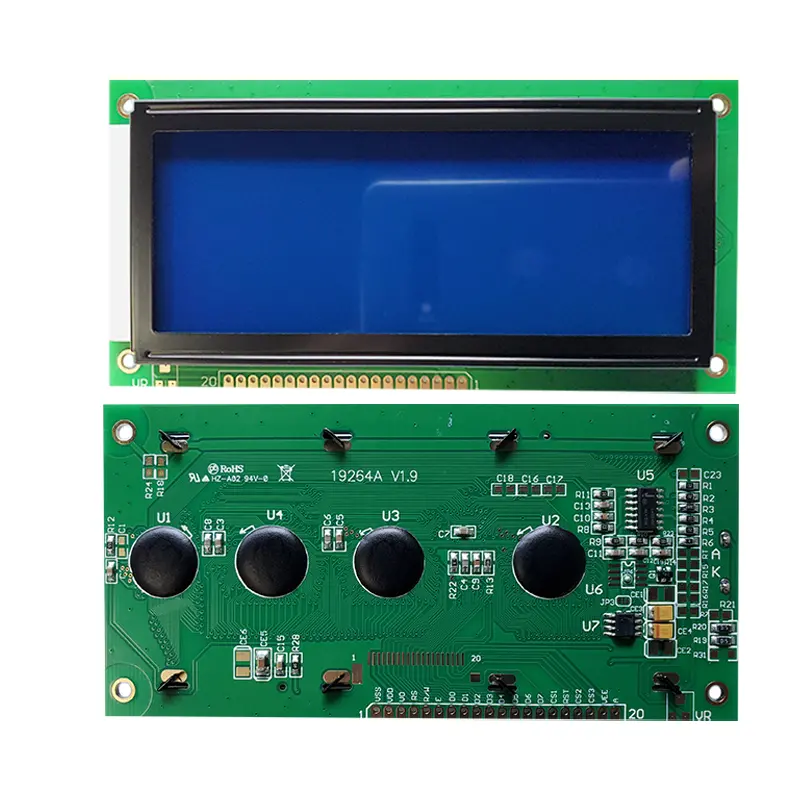

| Model | 19264A |
| Resolution | 192*64 |
| Module Size | 130×65×13mm |
| Viewing Area | 104×39mm |
| Type | Monochrome |

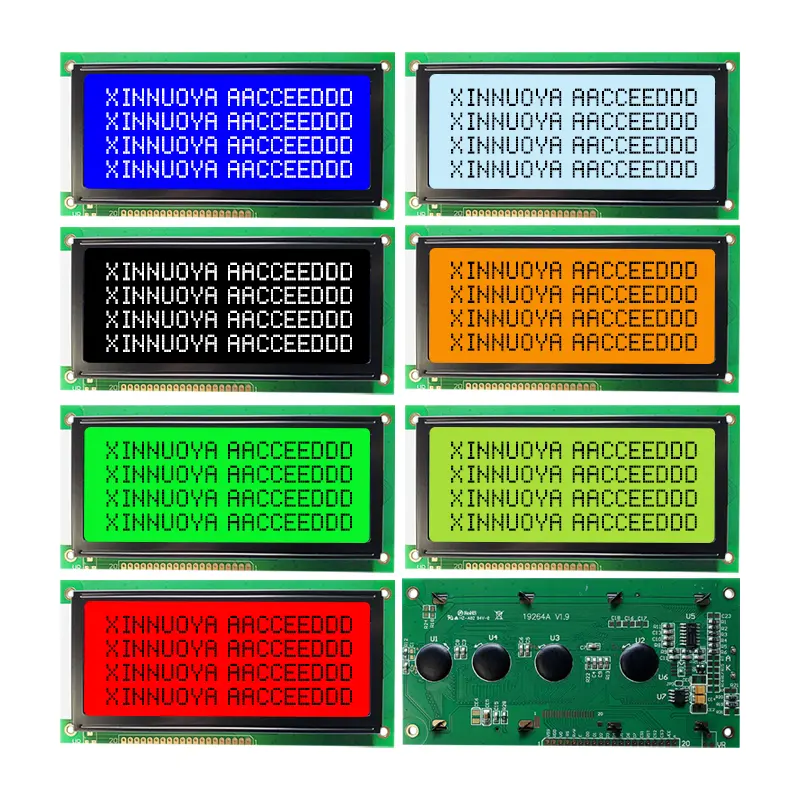

| Support Color |

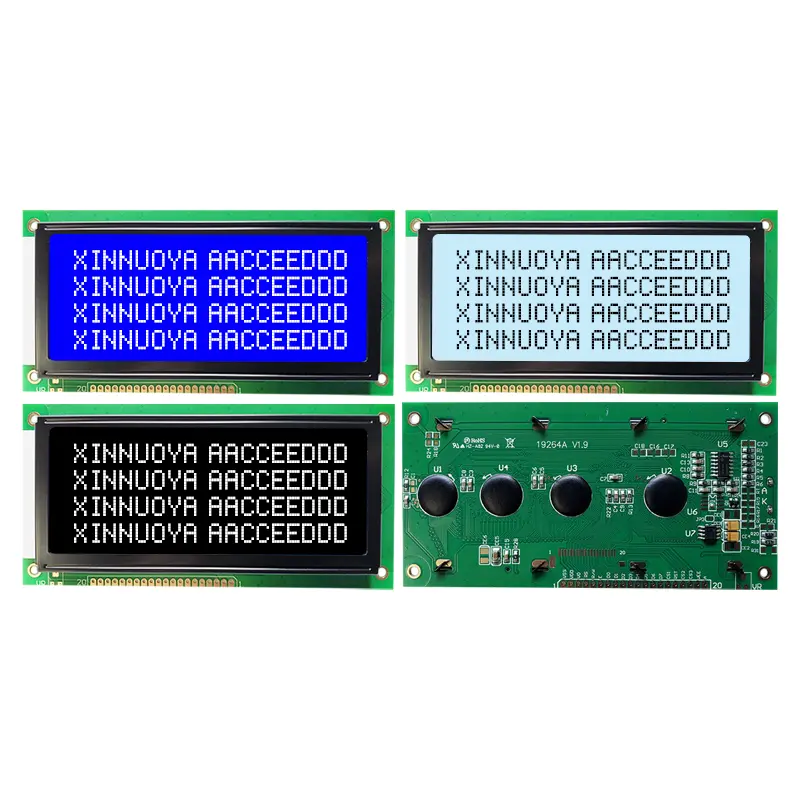

White, Orange, Blue, Yellow, Green, Purple，Red，Light Blue |
| Connector | parallel port |
| Operation temperature | 5V-3.3V |
| Controller | -20+70 |
| Controller | KS0107 |
| Touch Technology | / |
