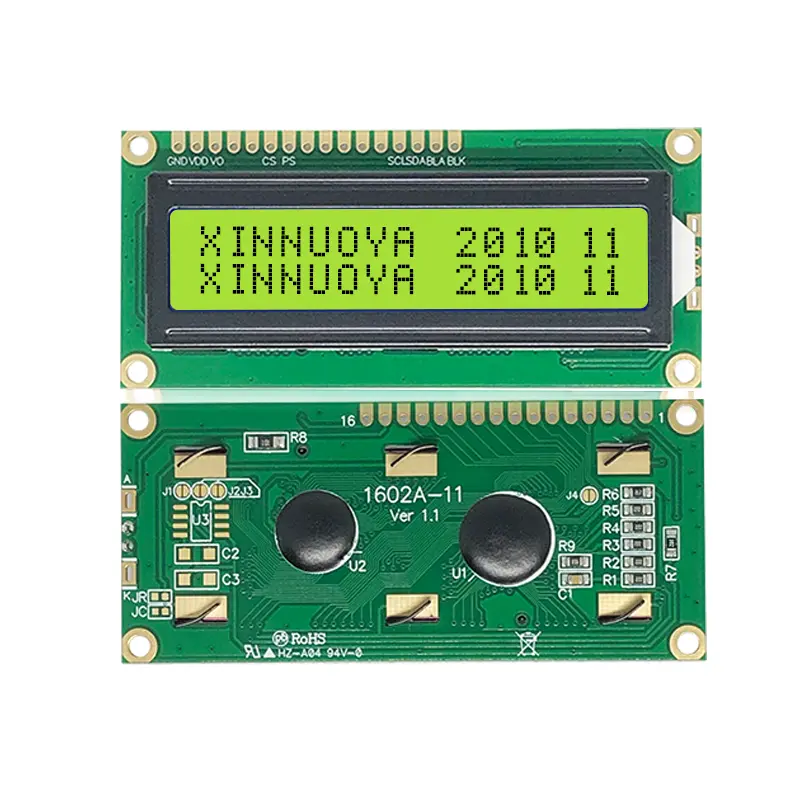

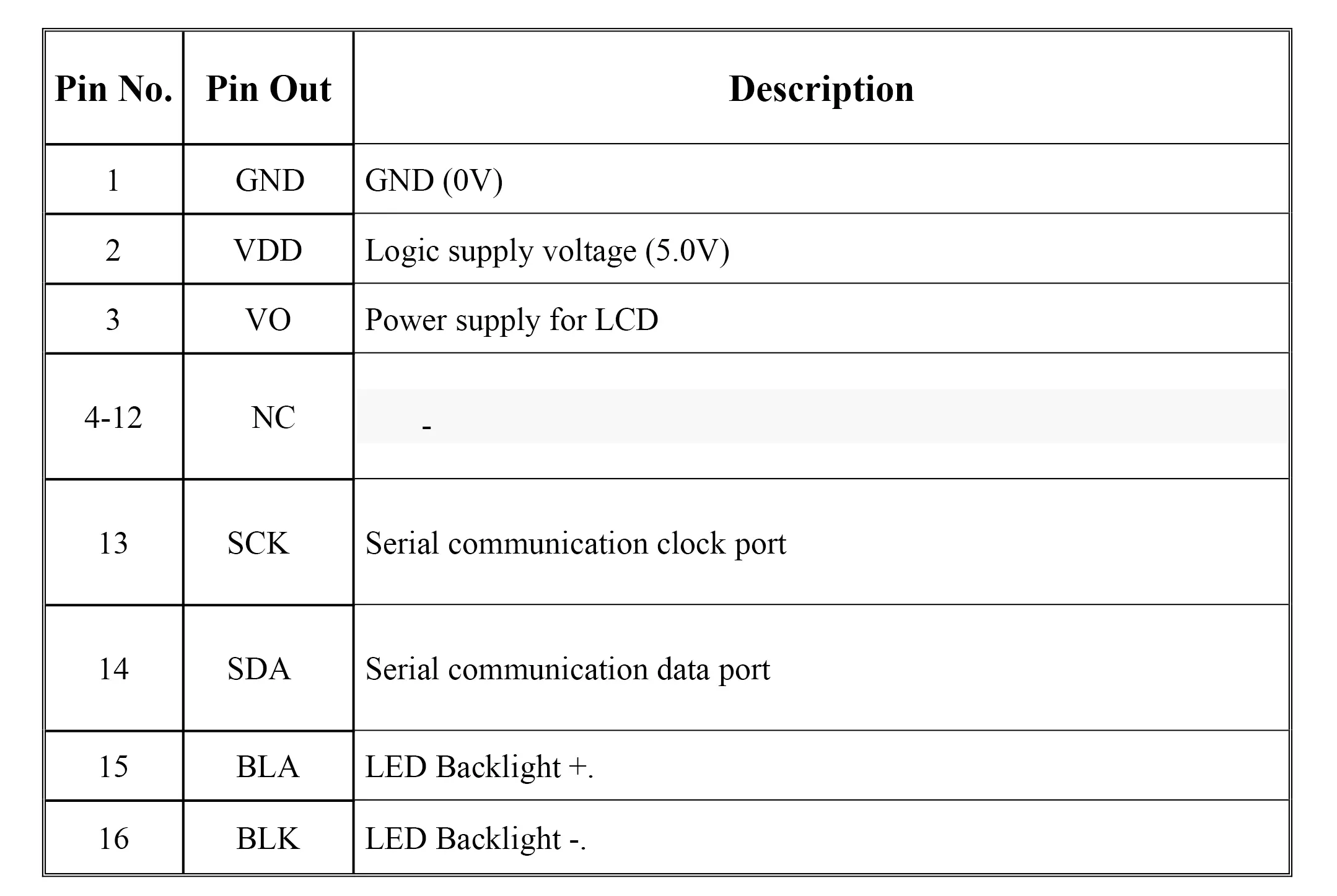

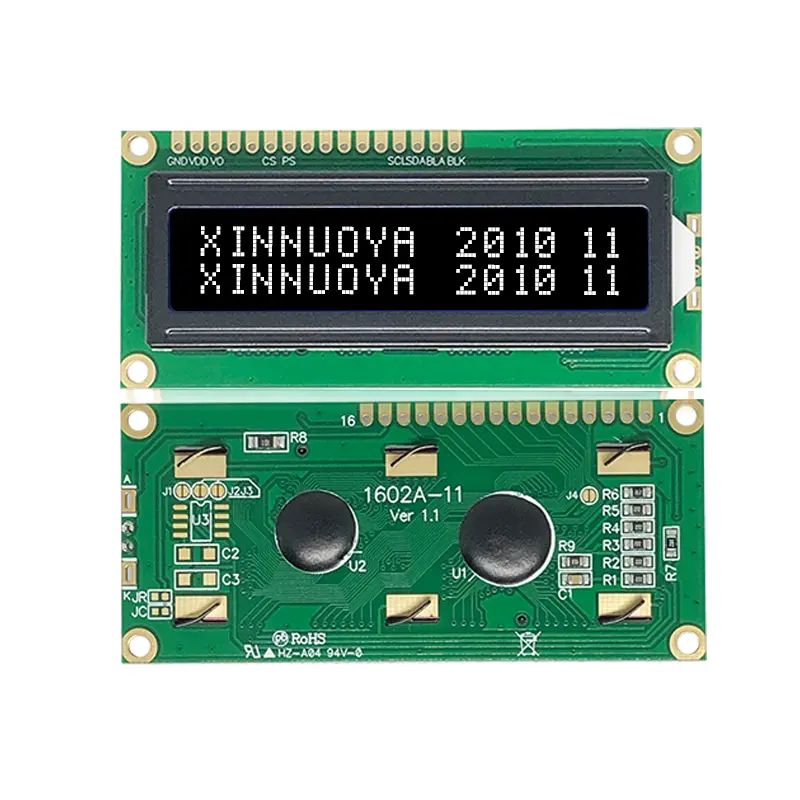

Character dot matrix LCD Introduction, According to the displayed capacity can be divided 16×1 (161)、16 x2(162)、20×2（202）and 16×4(164)etc Character liquid crystal display. These LCD shows vary in number of words, But they all have the same input output interface. Character type LCD1602 appearance with pins, 1602 uses serial interface, controller：AIP31068，For small instrument industry
| Manufacturer | XINNUOYA |
| Model | 1602A-11 |
| Resolution | 16*2 |

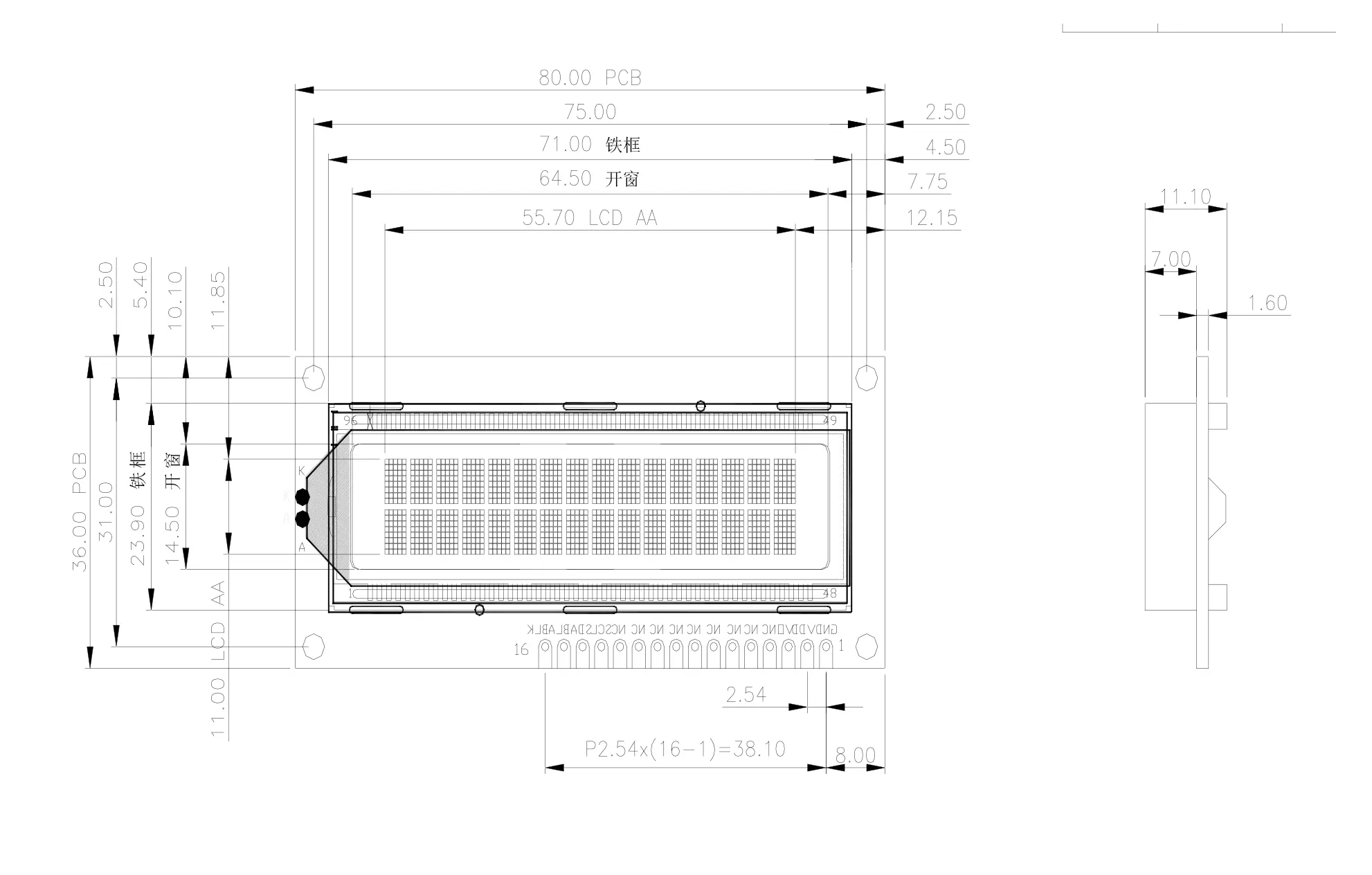

| Module Size | 80*36.0*11mm |
| Viewing Area | 64.5*14.5mm |
| Type | Monochrome |

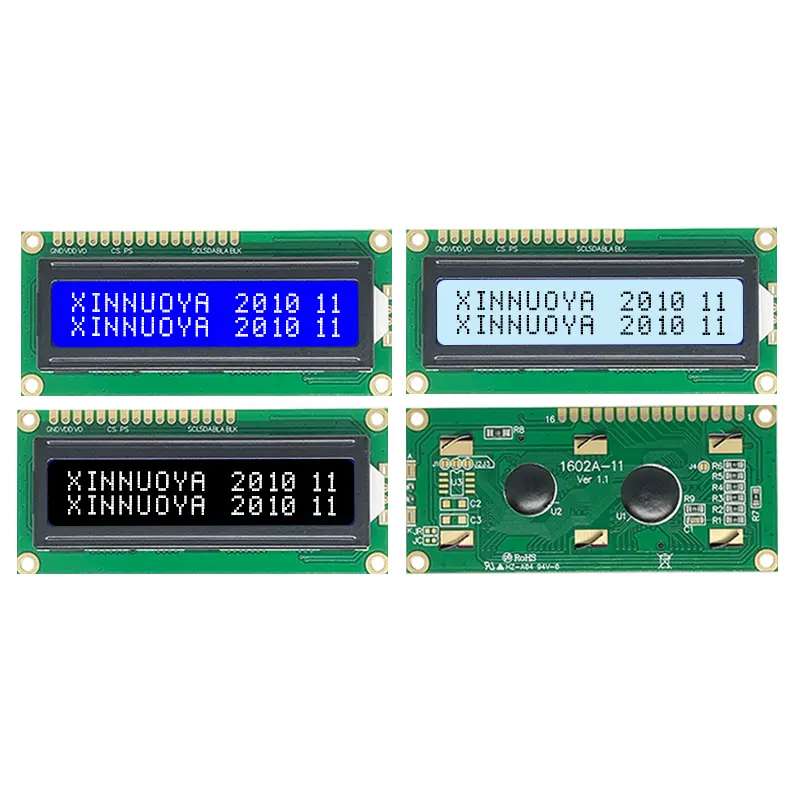

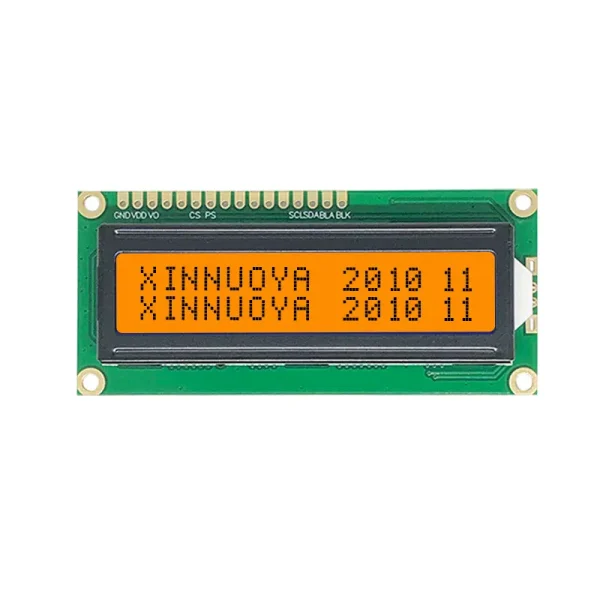

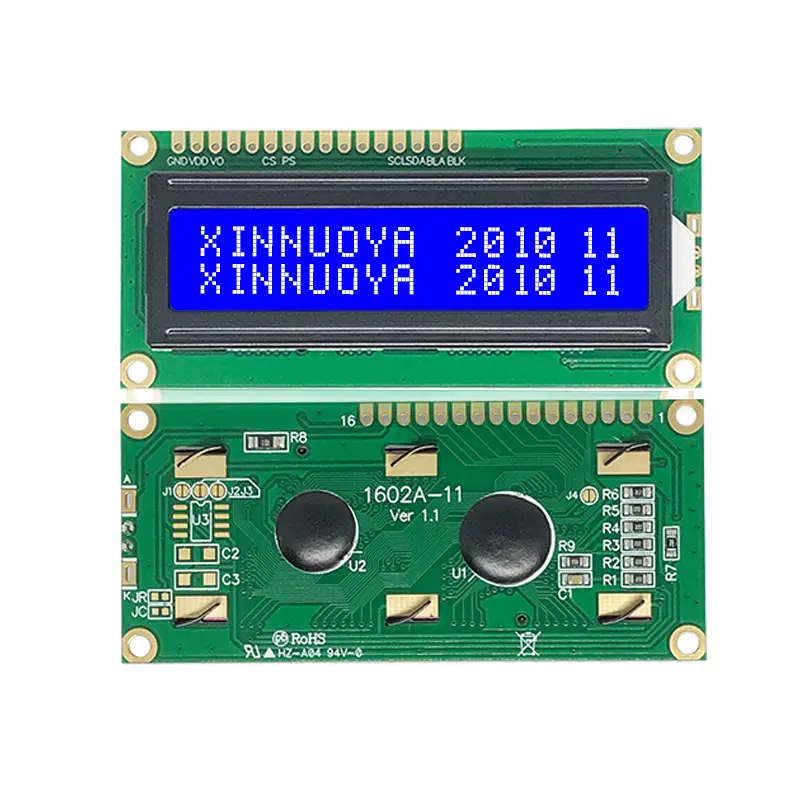

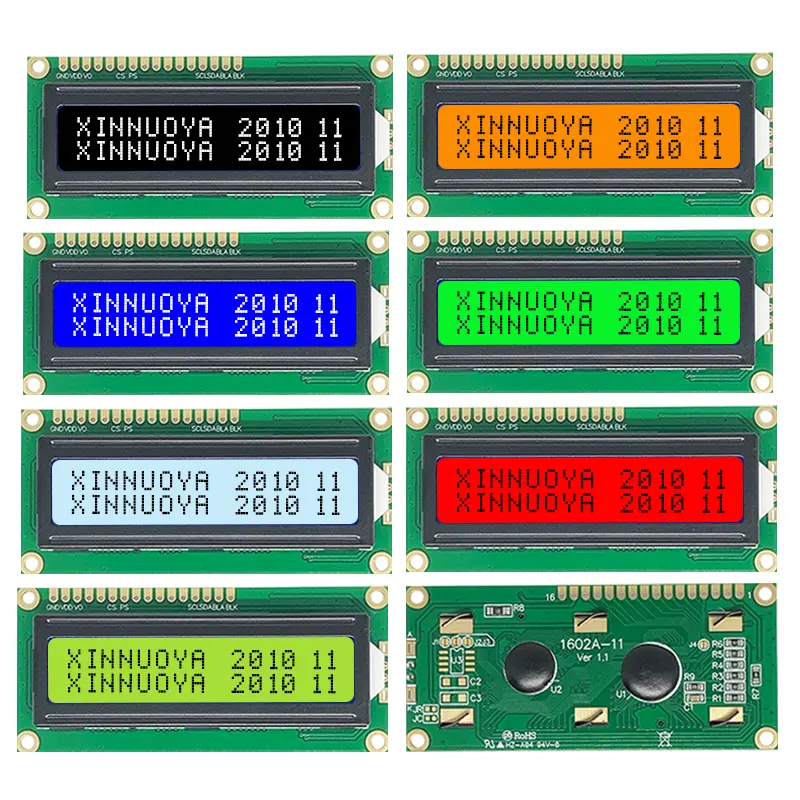

| Support Color |
White, Orange, Blue, Yellow, Green, Purple，Red，Light Blue |
| Connector | parallel port |
| Operation temperature | 5V-3.3V |
| Controller | -20+70 |

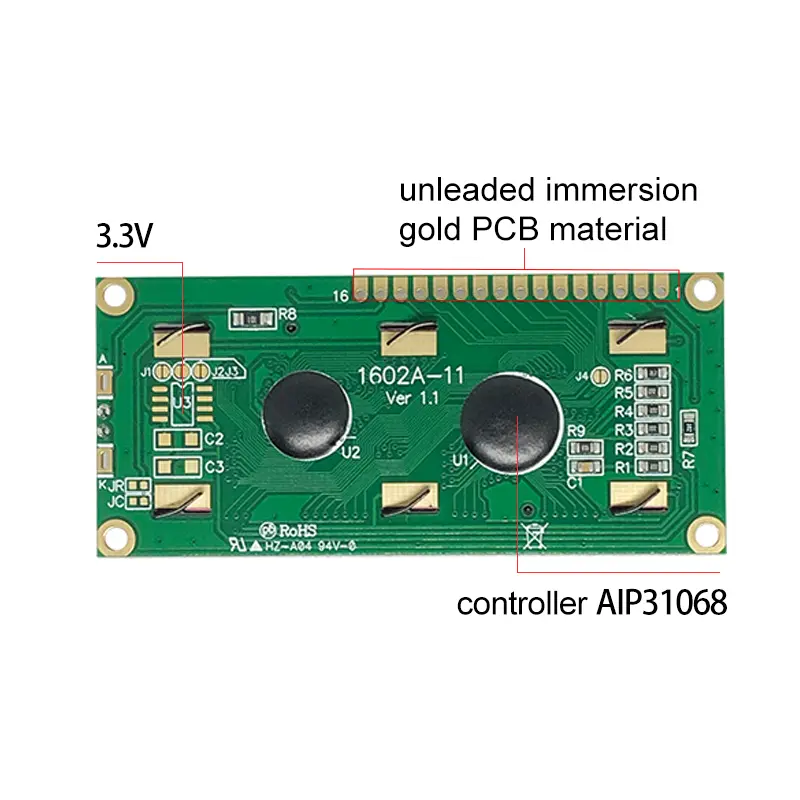

| Controller | AIP31068 |
| Touch Technology | / |
