It consists mainly of line drives/Column driver and122x32 Full lattice LCD display composition.Can also show 7X2 a(16X16dot matrix ) Chinese character. With external CPU interface can be controlled in serial or parallel mode.
Main technical parameters and performance:Power supply :VDD:+5V，show content:122(Column)X32(line)dot. Full screen lattice, 4.2M FOM(CGROND Total supply 8192 pcs Chinese character(16X16 dot matrix) 5.16K ROM(HOGROM) Total supply 128 pcs character(16X8 dot matrix). 6.2CZ frequency. Operating temperature:-20℃m:+70℃ Storage temperature:-30℃+80℃, controller:ST7920 Serial port pattern, support 3.3V and 5V

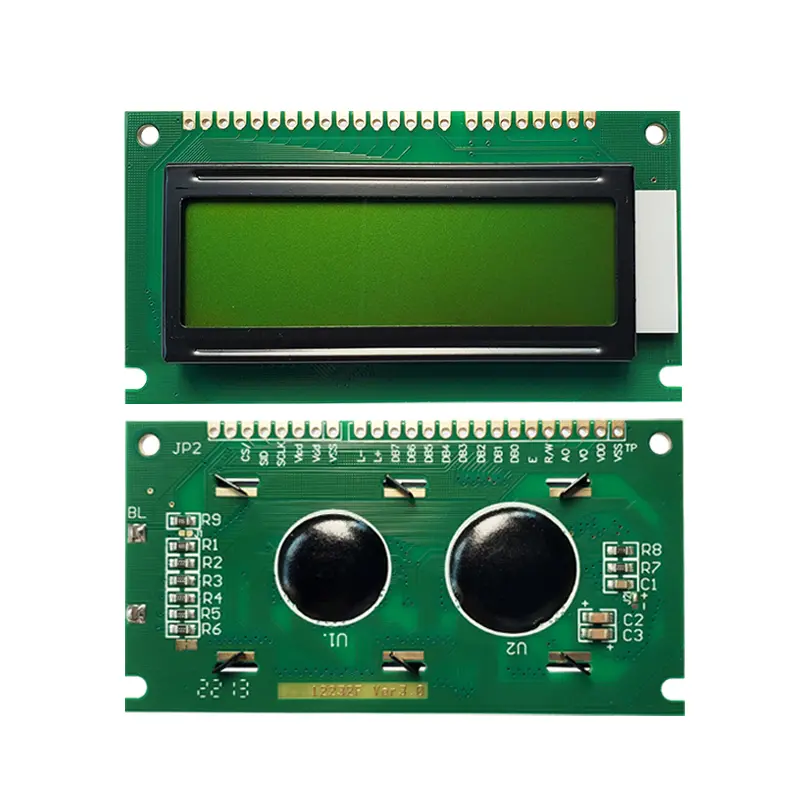

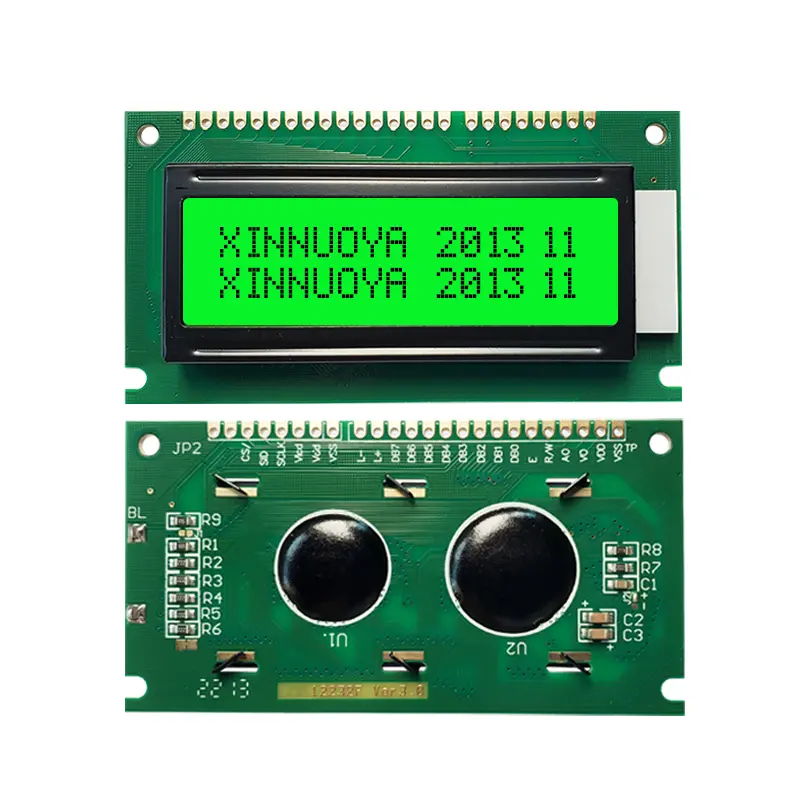

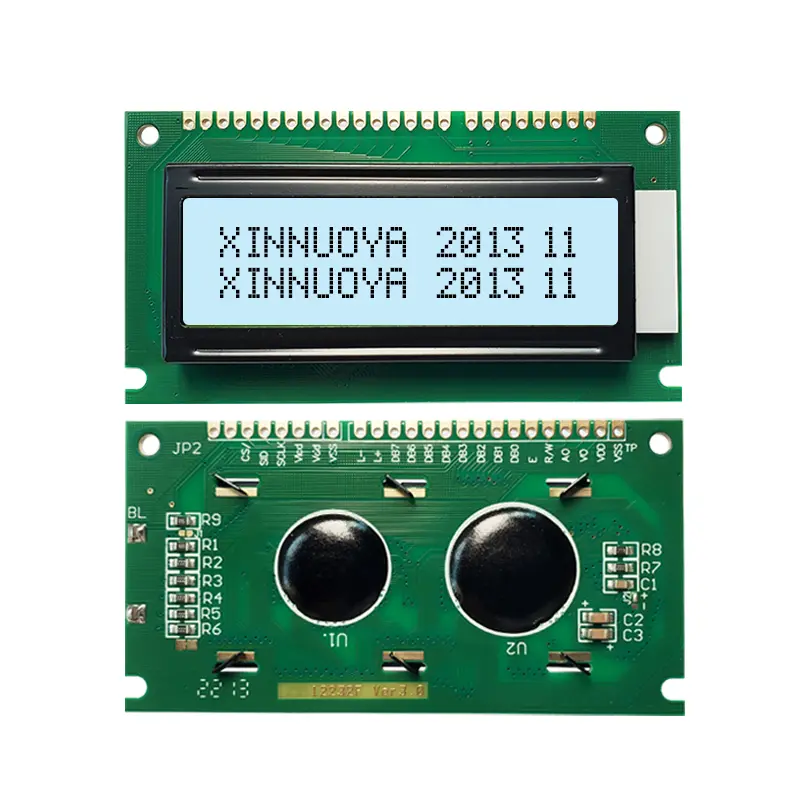

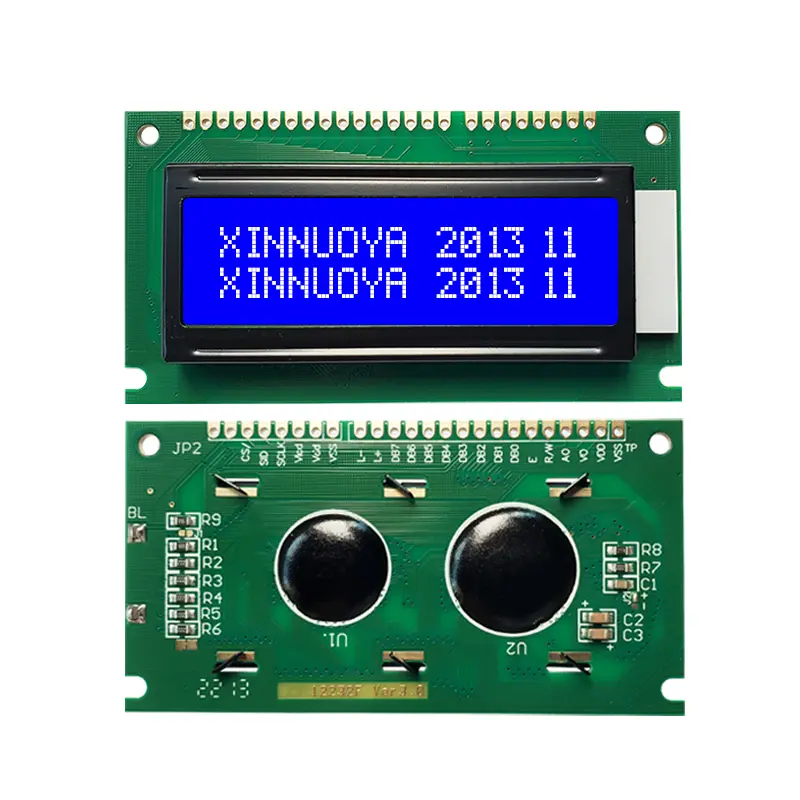

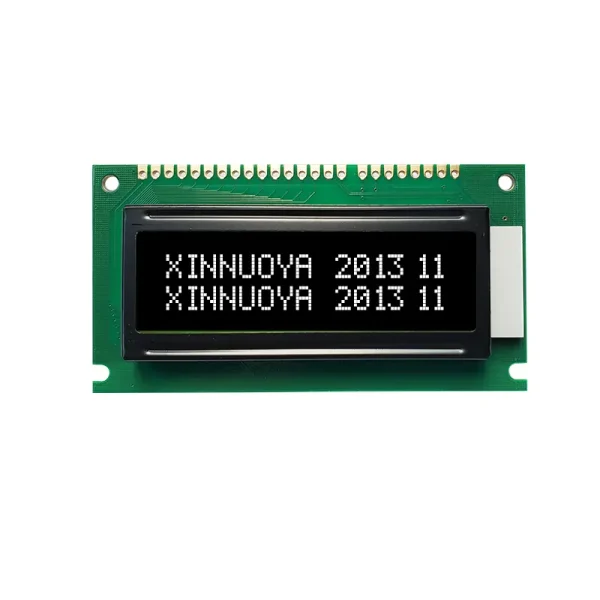

Hot sale 12232 LCD Module Parallel Serial ST7920 122×32 LCD Display Module
| Manufacturer | XINNUOYA |
| Model | 12232F |
| Resolution | 122*32 |

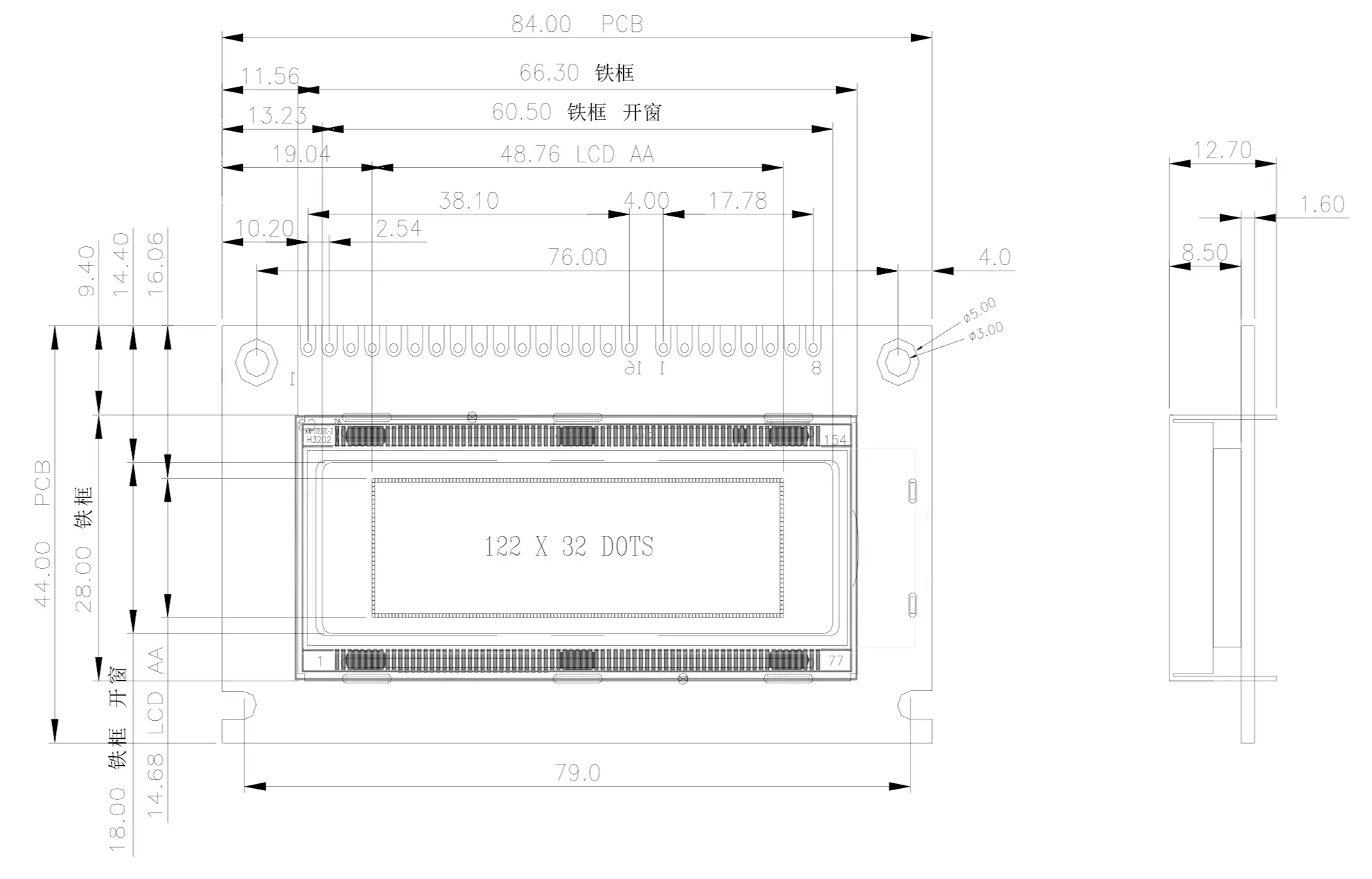

| Module Size | 84.0×44.0×13.0mm |
| Viewing Area | 60.5×18.0 mm |
| Type | Monochrome |

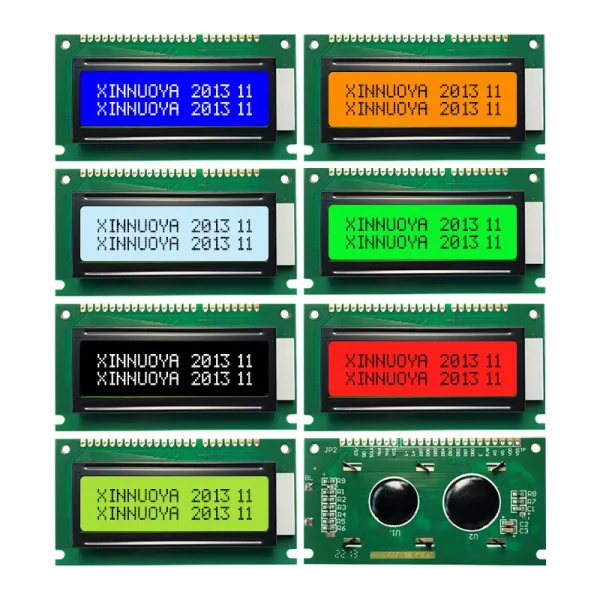

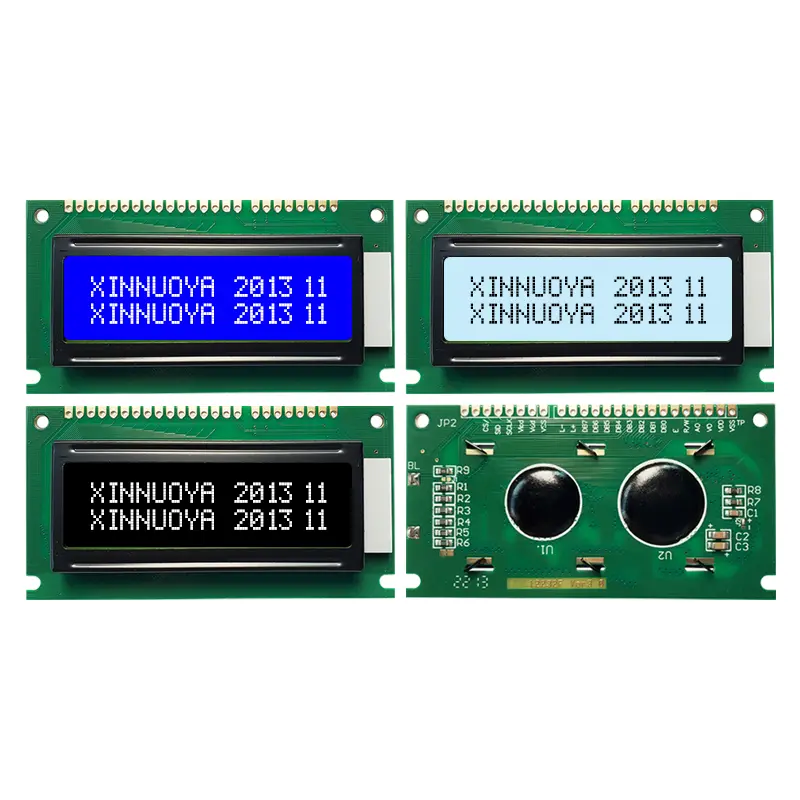

| Support Color |
White, Orange, Blue, Yellow, Green, Purple，Red，Light Blue |
| Connector | parallel port |
| Operation temperature | 5V-3.3V |
| Controller | -20+70 |

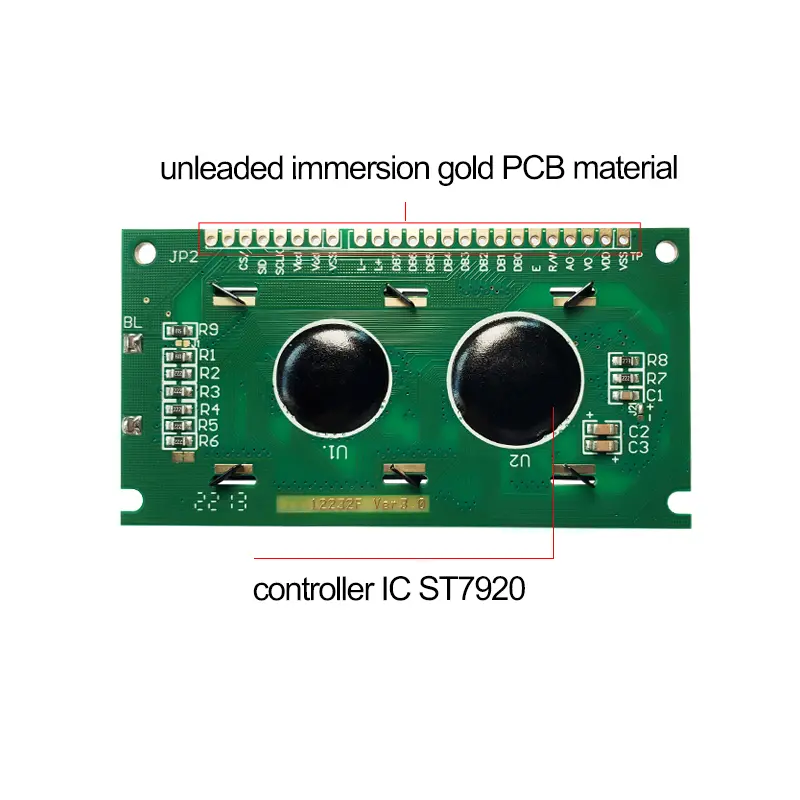

| Controller | ST7920 |
| Touch Technology | / |
